Morgan Rushworth PSR 50/155 Section Ring Roller 415v

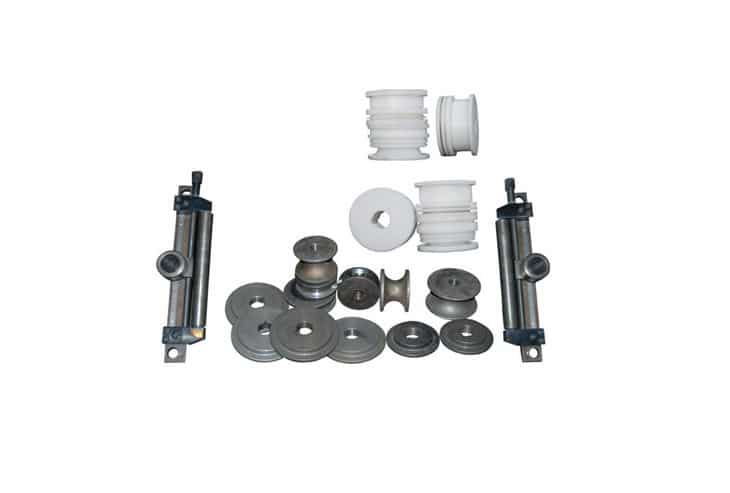

The Morgan Rushworth PSR 50/155 is a powered ring rolling machine with 50mm diameter shafts. The PSR 50 provides a cost effective solution for the bending of various sections, ideal for Û÷JobbingÛª type applications. While these machines have good capacities on the larger materials, multiple passes have to be rolled to reach smaller diameters.All machines include a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Morgan Rushworth PSR 50/155 Section Ring Roller 415vMorgan Rushworth PSR 50/155 Section Ring Roller 415v

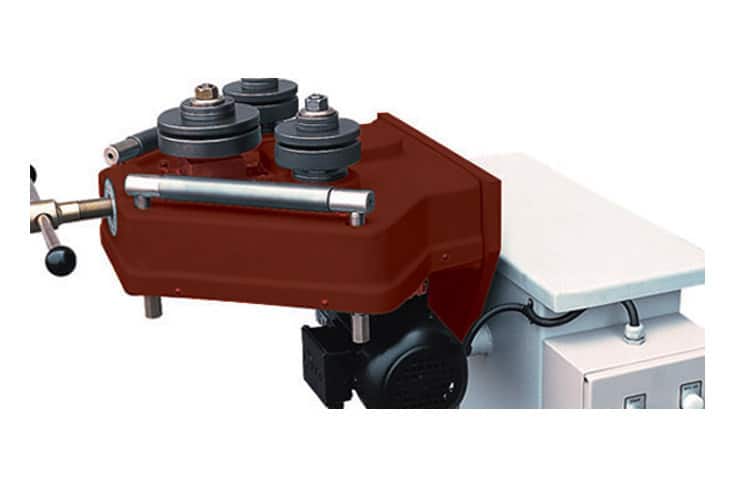

Morgan Rushworth PSR Section Ring Roller DetailMorgan Rushworth PSR Section Ring Roller Detail

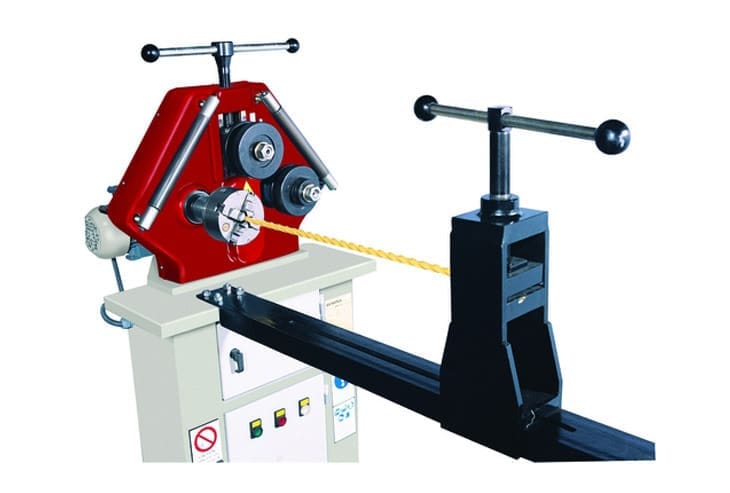

Twisting AttachmentTwisting Attachment

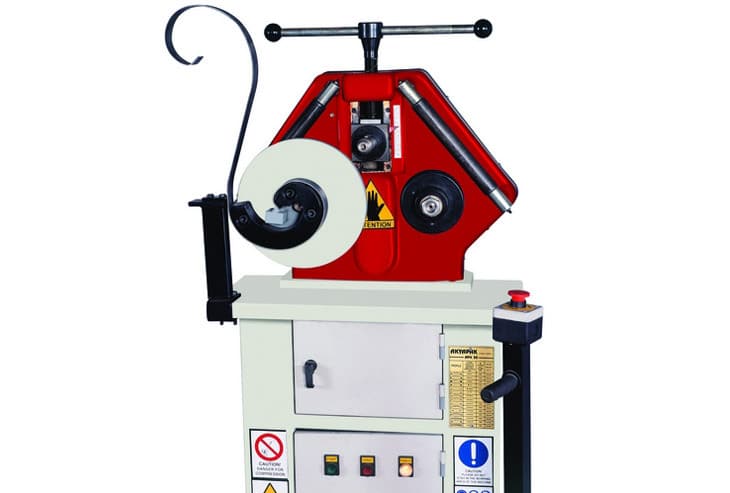

Twisting AttachmentTwisting Attachment

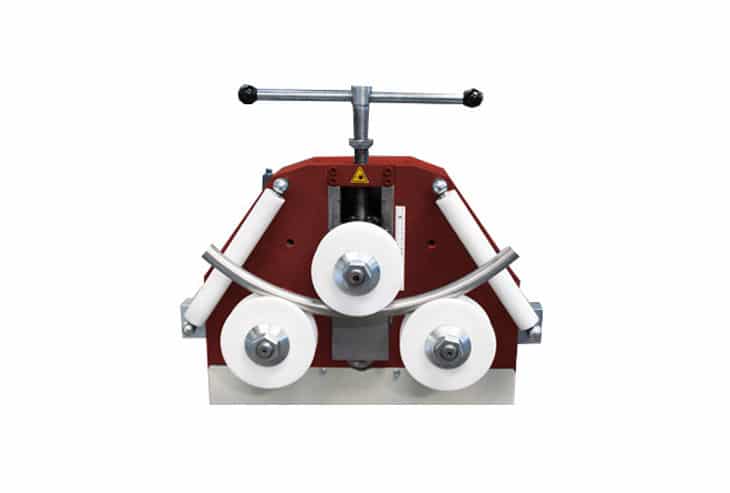

Morgan Rushworth PSR Section Ring Roller DetailMorgan Rushworth PSR Section Ring Roller Detail

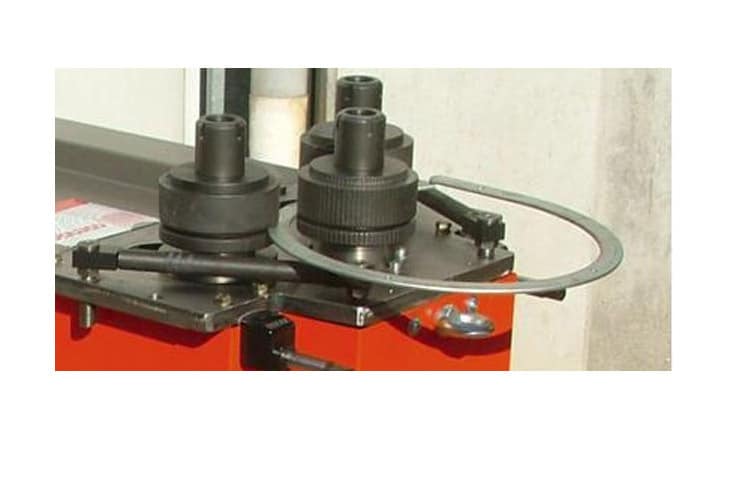

Morgan Rushworth Ring Rolling Machine DetailMorgan Rushworth Ring Rolling Machine Detail

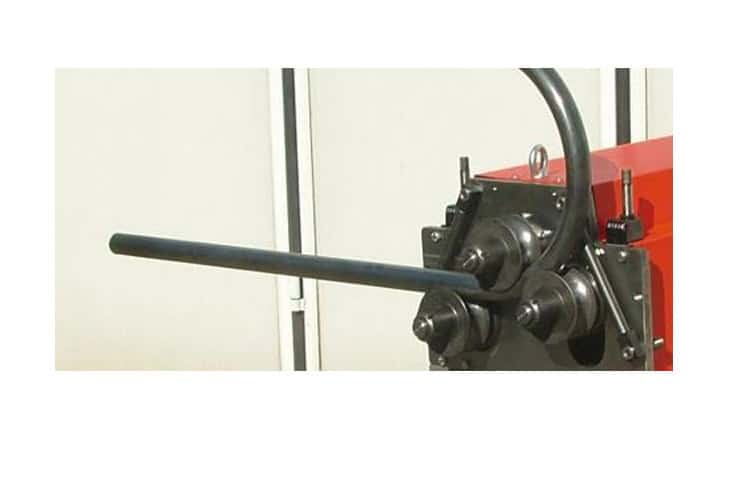

Morgan Rushworth Ring Rolling Machine DetailMorgan Rushworth Ring Rolling Machine Detail
Morgan Rushworth Ring Rolling Machine DetailMorgan Rushworth Ring Rolling Machine Detail
Morgan Rushworth Ring Rolling Machine DetailMorgan Rushworth Ring Rolling Machine Detail
Flat Bar The Hard Way:60 x 10mm 800 Dia
Flat Bar The Easy Way:120 x 15mm 750 Dia
Solid Square:35 x 35mm 1200 Dia
Solid Round:35mm 800 Dia
Tube – Thin Wall:70 x 2mm 1200 Dia (Special Rolls)
Tube – Thick Wall:48.3 x 3.2mm 900 Dia (Special Rolls)
Rectangle Tube:50 x 40 x 3mm
Square Tube:50 x 50 x 3mm (Special Rolls For 50Sq Box Only)
Angle – Leg Out:50 x 50 x 3mm
Angle – Leg In:50 x 50 x 5mm
T Section:50 x 50 x 6mm
Channel – Leg Out:60 x 30 x 5mm 550 Dia
Channel – Leg In:60 x 30 x 5mm 700 Dia
Shaft Diameter:50mm
Roll Diameter:155mm
Rolling Speed:4.5 m/min
Motor: Kw1.5 Kw
Weight:400 Kg
Length:750mm
Width:1000mm
Height:1400mm



  • Operates horizontally or vertically.
  • Forward and reverse Foot Pedal.
  • Manual roll adjustment with pointer and scale roll position indicator.
  • Optional tube rolls available on request.
  • A cost effective solution to out sourcing of sectional roller.
