Morgan Rushworth PSR 35 Ring Rolling Machine 240v/415v

Description

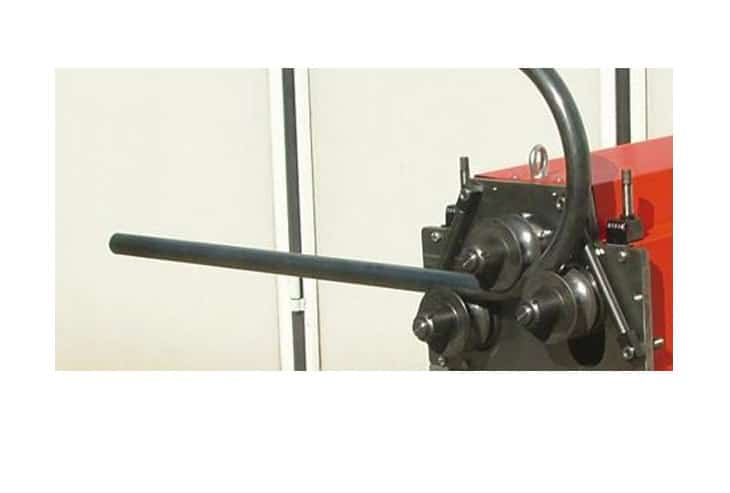

The Morgan Rushworth powered ring rolling machines are available in shaft diameters of 30mm and 50mm. Both models provide a cost effective solution for the bending of various sections, ideal for ‘jobbing’ type applications. All machines include a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. Bottom of the rolls are powered, providing powerful traction, whilst the top adjustable idler roll determines the bending of the radius according to its position.

Technical Spec

Flat Bar The Hard Way:50 x 10mm 800 Dia
Flat Bar The Easy Way:80 x 15mm 700 Dia
Solid Square:30 x 30mm 700 Dia
Solid Round:30mm 700 Dia
Tube – Thin Wall:60 x 2mm 1200 Dia (Special Rolls)
Tube – Thick Wall:42.4 x 3.2 900 Dia (Special Rolls)
Rectangle Tube:50 x 30 x 2mm
Square Tube:40 x 40 x 3mm
Angle – Leg Out:40 x 40 x 5mm
Angle – Leg In:40 x 40 x 5mm
T Section:50 x 50 x 6mm
Channel – Leg Out:50 x 25 x 5mm 400 Dia
Channel – Leg In:50 x 25 x 5mm 500 Dia
Shaft Diameter:35mm
Roll Diameter:137mm
Rolling Speed:2.1 m/min
Motor: Kw0.75 Kw
Weight:195 Kg
Length:670mm
Width:530mm
Height:1350mm



Features

  • Operates horizontally or vertically.
  • Forward and reverse Foot Pedal.
  • Manual roll adjustment with pointer and scale roll position indicator.
  • Optional tube rolls available on request.
  • A cost effective solution to out sourcing of sectional roller.
  • Variable speed
