Morgan Rushworth HSW Hydraulic Steelworker 415V

The Morgan Rushworth HSW 45 and HSW 60 are compact universal hydraulic steelworkers with 5 work stations and have been designed for volume production with maximum efficiency. Punching, shearing, cropping, notching can be instantly carried out by pressing the movable foot pedal. The low power inch mode on each work station enables correct workpiece positioning and tool alignment. The machines are supplied with a centralised lubrication system ensuring a easy, simple maintenance programme. Adjustable hold downs are situated on all work stations to ensure safe accurate processing of material. A 1m ruled length stop is supplied as standard equipment. Selmach Machinery has two models of steelworkers which range from 60 to 175 tonnes. Our HST machines are twin operated machines providing power and accuracy whilst our HSW provide single food pedal operation and are designed with volume, production and efficiency in mind.

Morgan Rushworth HSW Hydraulic Steelworker 415V imageMorgan Rushworth HSW Hydraulic Steelworker 415V image
Video thumbnail showing the Morgan Rushworth HSW Hydraulic Steelworker 415V
Video thumbnail showing the Morgan Rushworth HSW Hydraulic Steelworker 415V
Video thumbnail showing the Morgan Rushworth HSW Hydraulic Steelworker 415V
Morgan Rushworth HSW Hydraulic Steelworker 415V image 5Morgan Rushworth HSW Hydraulic Steelworker 415V image 5
HSW Steelworker Rear View
HSW Steelworker Rear View
HSW Steelworker Rear View
HSW Punching Station
HSW Punching Station
HSW Punching Station
Morgan Rushworth HSW Hydraulic Steelworker 415V image 8
HSW Notching Station
Morgan Rushworth HSW Hydraulic Steelworker 415V image 8
HSW Angle Station
HSW Angle Station
HSW Angle Station

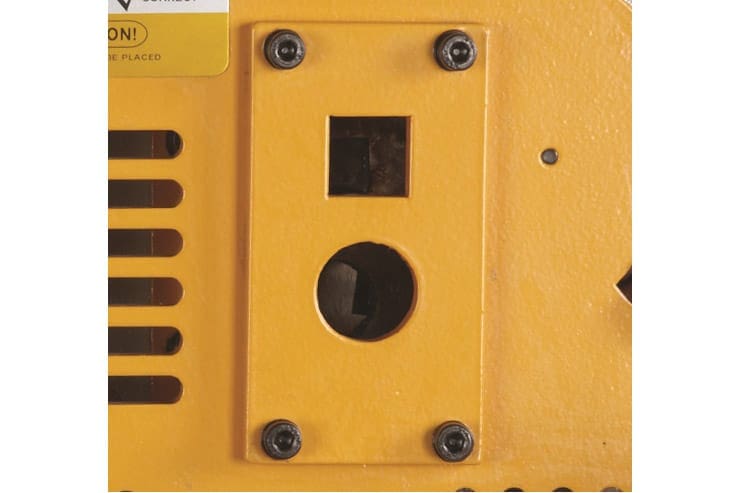

HSW Section Station
HSW Section Station
HSW Section Station
HSW Shearing Station
HSW Shearing Station
HSW Shearing Station
Making machinery since 1872Making machinery since 1872
MODEL   HSW 45 HSW 60
STOCK CODE M9001 M9002
PUNCHING
Diameter x Maximum Thickness mm 22 x 15 28 x 15
Maximum Diameter x Thickness mm 38 x 8 38 x 11
Stroke Length mm 50 55
Throat Depth mm 175 220
Largest Hole Diameter – Standard mm 38 38
Largest Hole Diameter – Optional mm 110 110
SHEARING
Flat Bar – Width x Maximum Thickness mm 200 x 15 200 x 20
Flat Bar – Maximum Width x Thickness mm 300 x 12 300 x 15
Angle Flange Trim – max 45° mm 80 x 10 80 x 10
ANGLE CUTTING
90° Cut mm 100 x 10 127 x 12
45° Mitre (true int./ext.) mm 70 x 6 80 x 8
SECTION CUTTING
Round/Square mm 30/25 40/35
Channel/Beam – (Optional) mm 80 x 45 80 x 45
Tee – (Optional) mm 40 x 5 40 x 5
NOTCHING
Material Thickness mm 8 10
Width – Rectangle mm 35 42
Depth – Rectangle mm 75 100
Depth – Vee mm 60 60
TUBE NOTCH (OPTIONAL)
Maximum Outside Diameter mm 60 60
BENDING (OPTIONAL)
Bar Bending – Maximum Capacities mm 100 x 12 150 x 12
Sheet Bending – Maximum Capacities mm
TECHNICAL DATA
Motor Power kW 4 4
Weight kg 1180 1440
Length mm 1450 1520
Width mm 590 590
Height mm 1620 1700
based on material strength of 450 N/mm2

Features

  • Built-in LED Lighting System
  • Punch station with fully adjustable ram stroke
  • Low power inching for tool alignment
  • Angle station for cropping angle iron at any angle from 90° to 45° with either internal or external mitres
  • Section cutting station for cropping round and square bar
  • Shear station for cutting both thin and thick material without requiring blade gap or cutting angle adjustment. Can also be used for cropping the leg of angle iron
  • 1 metre ruled length stop covering all cropping/shearing stations for repetitive work
  • Notching station with rectangular notch
  • Centralised lubrication system
  • Comprehensive safety guards

Options

  • Tooling for special applications
  • Flat bar bending unit at notch end
  • Minimum Deform Stripper Assembly
