Morgan Rushworth HST Hydraulic Steelworker 415V

The Morgan Rushworth HST hydraulic steelworkers supplied with standard tooling including repetition support tables at punch, shear and the notch stations. All five work stations are equipped with easily adjustable hold downs to safely control each operation. Comprehensive safety guards are fitted as standard on all work stations. The HST range are twin operator machines with the hydraulic system activated by two shielded foot controls, one operating the punch and the cylinder, the other operating the shear and cylinder. The system gives accurate power inching to all five work stations and allows the machine to be stopped at any position giving safe accurate tool setting and work positioning.

A 1m auto crop ruled length stop and LED Lightings at the five stations are fitted as standard with all HST machines.

Selmach Machinery has two models of steelworkers which range from 60 to 175 tonnes.

Our HST machines are twin operated machines providing power and accuracy whilst our HSW provide single food pedal operation and are designed with volume, production and efficiency in mind.

Morgan Rushworth HST Hydraulic Steelworker 415V imageMorgan Rushworth HST Hydraulic Steelworker 415V image
Video thumbnail showing the Morgan Rushworth HST Hydraulic Steelworker 415V
Video thumbnail showing the Morgan Rushworth HST Hydraulic Steelworker 415V
Video thumbnail showing the Morgan Rushworth HST Hydraulic Steelworker 415V

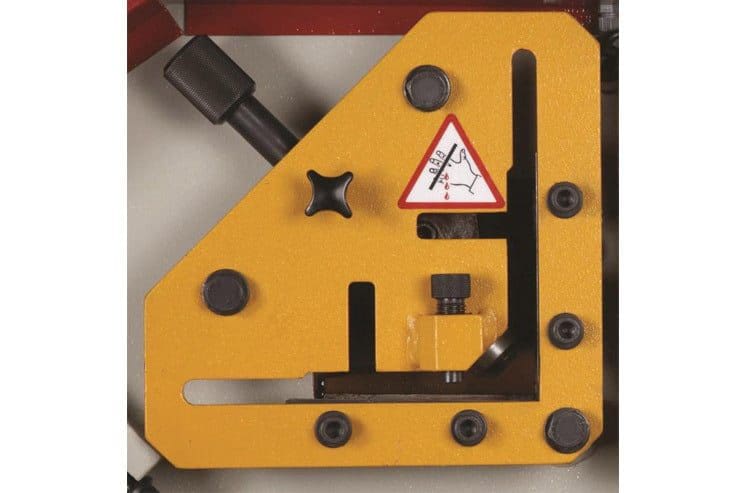

HST Angle Station
HST Angle Station
HST Angle Station
Morgan Rushworth HST Hydraulic Steelworker 415V image 6

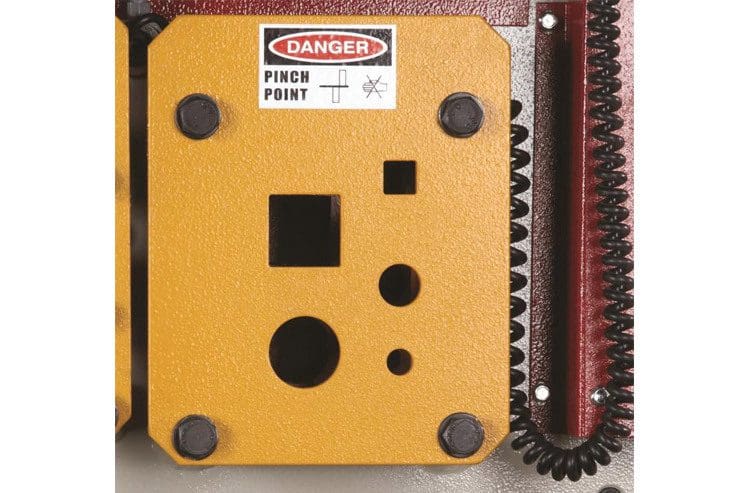

HST Section Station
Morgan Rushworth HST Hydraulic Steelworker 415V image 6

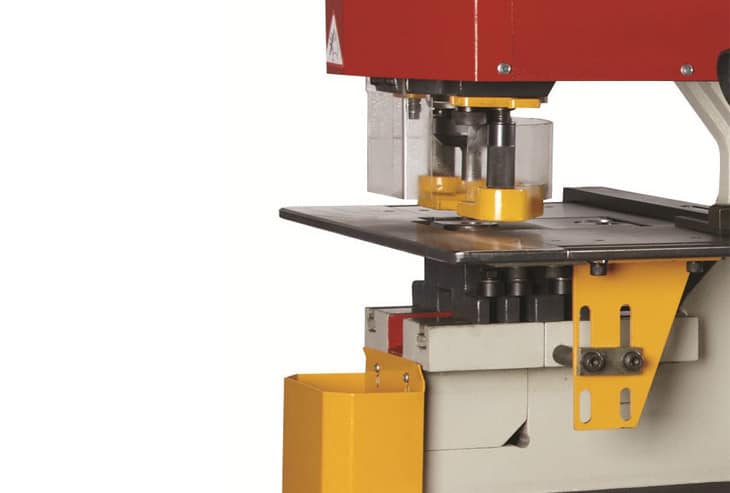

HST Punching Station
HST Punching Station
HST Punching Station

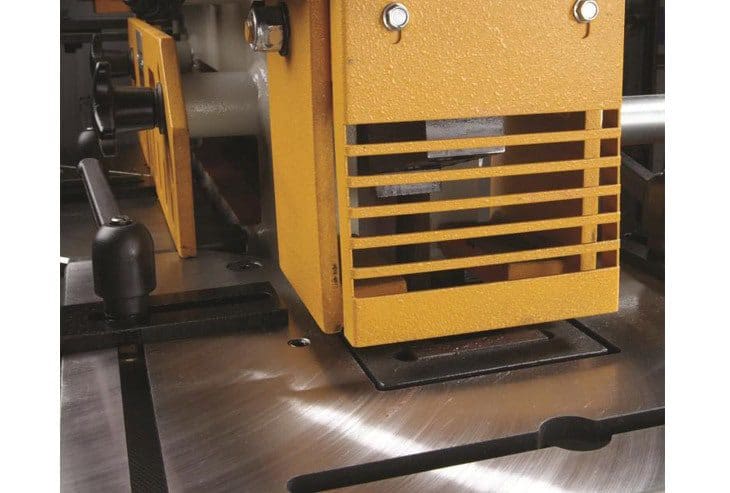

HST Notching Station
HST Notching Station
HST Notching Station

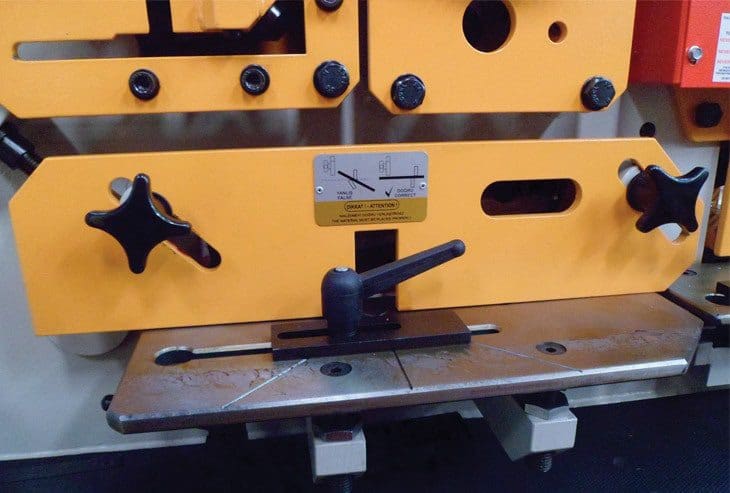

HST Shearing Station
HST Shearing Station
HST Shearing Station

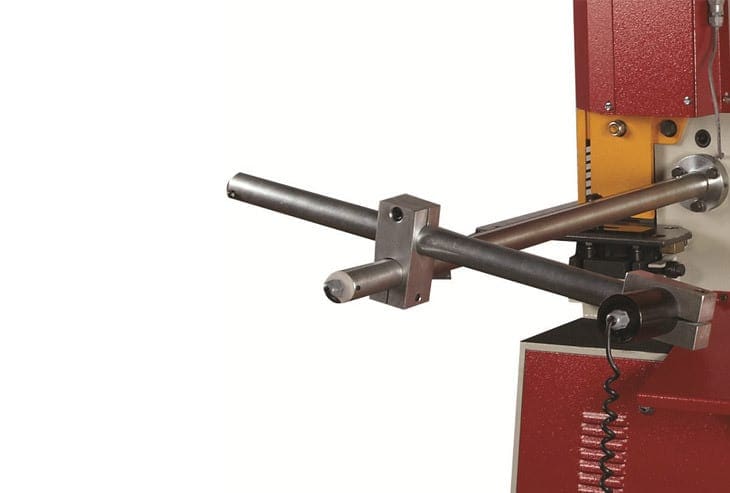

Close up of the Auto Crop Ruled Length StopClose up of the Auto Crop Ruled Length Stop
HST Auto Stop
HST Auto Stop
HST Auto Stop
HST Centralised Lubricant System
HST Centralised Lubricant System
HST Centralised Lubricant System
Making machinery since 1872Making machinery since 1872
MODEL   HST 70 HST 95 HST 125 HST 175
STOCK CODE M9003 M9004 M9005 M9006
PUNCHING
Diameter x Maximum Thickness mm 26 x 20 33 x 20 35 x 25 40 x 32
Maximum Diameter x Thickness mm 57 x 10 57 x 12 57 x 16 57 x 22
Stroke Length mm 55 80 80 80
Throat Depth mm 305 355 355 625
Largest Hole Diameter – Standard mm 38 57 57 57
Largest Hole Diameter – Optional mm 160 160 225 225
SHEARING
Flat Bar – Width x Maximum Thickness mm 300 x 20 380 x 20 380 x 25 380 x 30
Flat Bar – Maximum Width x Thickness mm 375 x 15 480 x 15 600 x 15 600 x 20
Angle Flange Trim – max 45° mm 100 x 15 120 x 15 120 x 15 120 x 15
ANGLE CUTTING
90° Cut mm 130 x 13 150 x 15 150 x 18 200 x 20
45° Mitre (true int./ext.) mm 70 x 10 80 x 8 80 x 10 80 x 10
SECTION CUTTING
Round/Square mm 45 50 55 65/55
Channel/Beam – (Optional) mm 120 x 58 160 x 74 200 x 100 300 x 125
Tee – (Optional) mm 90 x 11 100 x 11 120 x 12 150 x 15
NOTCHING
Material Thickness mm 10 13 13 16
Width – Rectangle mm 45 52 60 60
Depth – Rectangle mm 90 100 100 100
Depth – Vee mm 60 70 80 80
TUBE NOTCH (OPTIONAL)
Maximum Outside Diameter mm 83 108 108 165
BENDING (OPTIONAL)
Bar Bending – Maximum Capacities mm 250 x 13 250 x 20 250 x 22 250 x 25
Sheet Bending – Maximum Capacities mm 500 x 3 500 x 3 700 x 3 700 x 4
TECHNICAL DATA
Motor Power kW 5.5 7.5 11 11
Weight kg 1620 2430 3080 6000
Length mm 1700 1920 2040 2730
Width mm 710 790 800 1120
Height mm 1800 1910 2030 2160
based on material strength of 450 N/mm2

Features

  • Built-in LED Lighting System
  • Twin operator hydraulic system with foot pedal control for the punching station independent of the shearing and notch stations
  • Punch station featuring vertical ram action with fully adjustable ram stroke.
  • Large punch station table with adjustable backgauge
  • Low power inching for tool alignment
  • Angle station for cropping angle iron at 90° or at 45° with either internal or external mitres
  • Section cutting station for cropping round and square bar
  • Shear station for cutting both thin and thick material without requiring blade gap or cutting angle adjustment. Can also be used for cropping the leg of angle iron and chamfering the ends of small flat bars
  • 1 metre auto crop ruled length stop covering all cropping/shearing stations for repetitive work
  • Notching station with rectangular notch tooling
  • Centralised lubrication system
  • Comprehensive safety guards

Options

  • Tooling for special applications
  • Flat bar bending unit at notch end
  • Flat bar bending unit at punch end
  • Minimum Deform Stripper Assembly
