Morgan Rushworth HST 125 Hydraulic Steelworker 415V

The HST 125 machine is supplied with standard tooling including repetition support tables at punch, shear and notch stations. All five work stations are equipped with easily adjustable hold downs to safely control each operation. A special unique feature of the HST Range is the hydraulic hold down stripper at the punch station. This reduces deformation, particularly when punching a series of holes in flat bar and increases tool life. Comprehensive safety guards are fitted as standard on all work stations. The HST Range are twin operated machines with the hydraulic system activated by two shielded foot controls, one operating the punch and cylinder, the other operating the shear end cylinder. The shear cylinder provides the power to the three shearing and the notch stations. The system gives accurate power inching at all five work stations and allows the machine to be stopped at any position giving safe and accurate tool setting and work positioning. Centralised lubrication is metered by one shot system, being only one feature of the low maintenance requirements. A 1M touch and cut ruled length stop and a removable halogen lamp are supplied as standard equipment.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Morgan Rushworth HST 125 Hydraulic SteelworkerMorgan Rushworth HST 125 Hydraulic Steelworker
Close up of the Notching StationClose up of the Notching Station

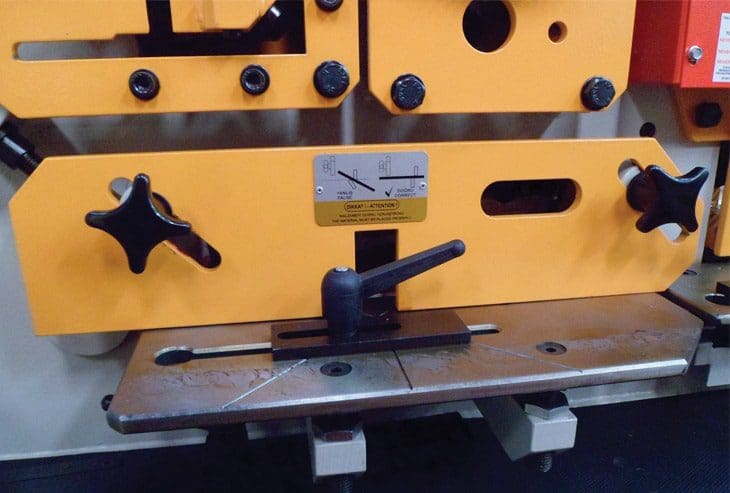

Cose up of the Shearing StationCose up of the Shearing Station

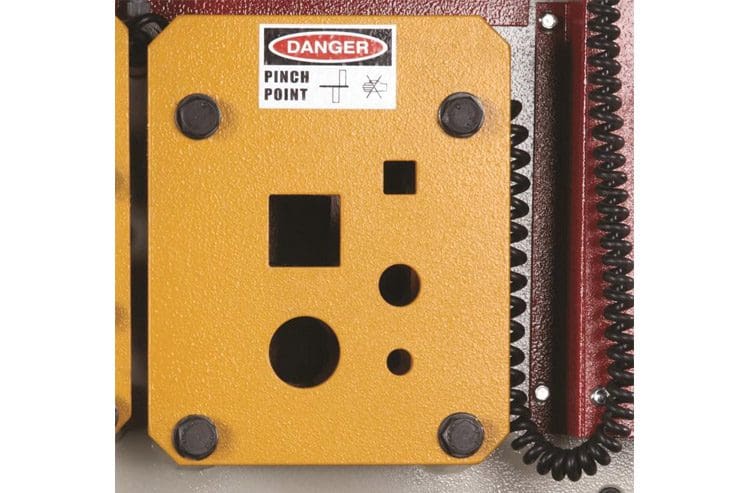

Close up of the Section Cutting StationClose up of the Section Cutting Station

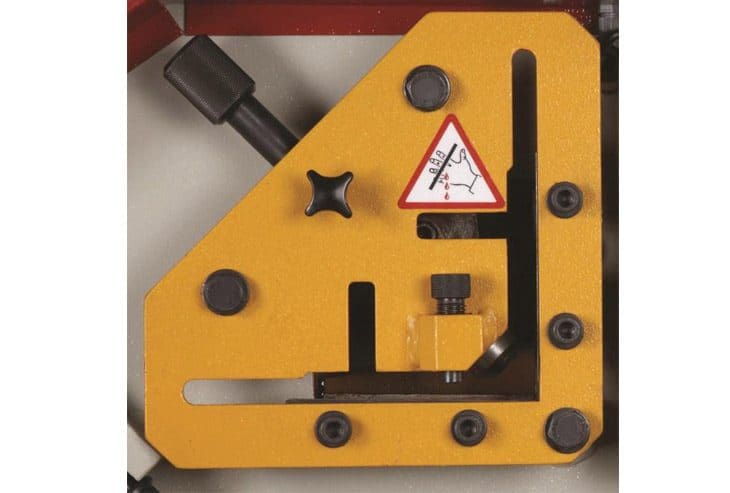

Close up of the Angle StationClose up of the Angle Station
Close up of the Punching StationClose up of the Punching Station
Close up of the Auto Crop Ruled Length StopClose up of the Auto Crop Ruled Length Stop
Making machinery since 1872Making machinery since 1872
Punching: Diameter x Maximum Thickness35 x 25mm
Punching: Maximum Diameter x Thickness57 x 16mm
Stroke Length:80mm
Throat Depth:355mm
Largest Hole Diameter Standard:57mm
Largest Hole Diameter – Optional:225mm
Shearing Flat Bar – Width x Maximum Thickness:380 x 25mm
Shearing Flat Bar – Maximum Width x Thickness:600 x 15mm
Shearing – Angle Flange Trim (Max 45 Degrees):120 x 15mm
Angle Cutting – 90 Degrees:150 x 15mm
Angle Cutting – 45 Degrees:80 x 10mm
Section Cutting – Round/Square:55mm
Section Cutting – Channel/Beam – (Optional):200 x 100mm
Section Cutting – Tee (Optional):120 x 12mm
Notching – Material Thickness:13mm
Notching – Width:60mm
Notching – Depth:100mm
Notching/Vee – Depth:80mm
Optional Tube Notcher:108mm
Optional Bar Bending Unit:250 x 22mm
Optional Sheet Bending Unit:700 x 3mm
Optional Punch At Notch Station – Throat Depth:125mm
Maximum Capacity – Diameter x Thickness:38 x 12mm
Motor: Kw11 Kw
Nett Weight: Kg3080 Kg
Length:2040mm
Width:800mm
Height:2030mm
  • PUNCH STATION
    Easy tool change system and swing away stripper with fast manual adjustment ensure a quick setup.
  • ANGLE STATION
    This station provides large capacity angle cutting at 90° and 45°. Angles between 45° and 90° can be achieved by first cutting at 90° and then flange trimming to the required angle in the shearing station.
  • SECTION CUTTING STATION
    The machines are fitted as standard with blades for cutting round and square bars. With extra equipment, the machines are able to cut, in this aperture, channel, joist, T-sections and many other special profiles.
  • NOTCHING STATION
    The notching station is fitted with a table with adjustable back stops allowing repetitive positioning.
  • SHEARING STATION
    The shearing unit is fitted with a simple robust holddown which is adjustable to any thickness of material within the cutting capacity of the machine. The shear feed table with adjustable guides is fitted to allow accurate feeding of materials. The guide can be adjusted to allow mitre cutting up to 45° for flat bars or to trim the flanges of angle.
  • AUTO CROP RULED LENGTH STOP
    Standard 1m stop with automatic shearing bypassing the foot switch for production applications. Can be used on all shear stations. Available in 2m and 3m options.
