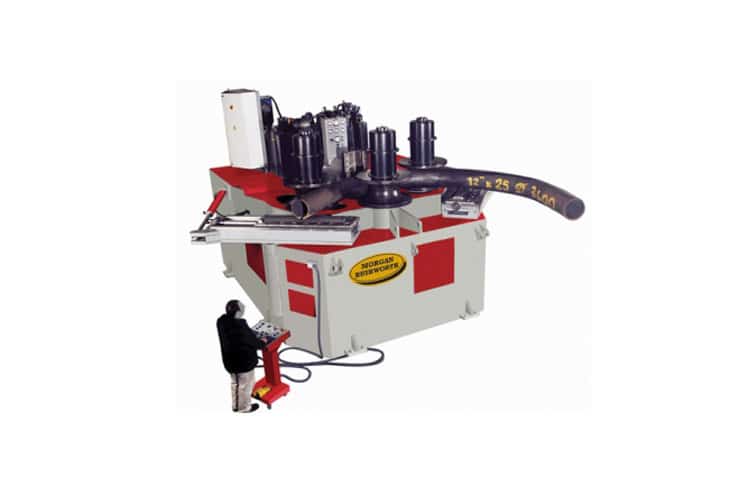

Morgan Rushworth HSR 240/550 Section Ring Rolling Machine 415v

The Morgan Rushworth HSR range of hydraulic large section bending machines are designed to roll various material sections and are available with shaft diameters from 180mm up to 360mm. These have twin rams powering both the back rolls providing pre-bending capability and the convenience of performing the bending operation with the material in the horizontal position. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, avoiding the cost of additional tooling. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material. These machines are currently performing for some of the worlds most well known section rolling companies.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Morgan Rushworth HSR 240/550 Section Ring Rolling Machine 415vMorgan Rushworth HSR 240/550 Section Ring Rolling Machine 415v
Morgan Rushworth Section RollingMorgan Rushworth Section Rolling
Flat Bar The Hard Way:175 x 40mm 1300 Dia
Flat Bar The Easy Way:350 x 50mm 900 Dia
Solid Square:110 x 110mm 1500 Dia
Solid Round:130mm 1600 Dia
Tube – Thick Wall:219.1 x 8.18mm 2500 Dia
Square Tube:150 x 10mm
Angle – Leg Out:160 x 20mm 1600 Dia
Angle – Leg In:150 x 20mm 1600 Dia
T Section – Leg Out:160 x 20mm 1400 Dia
T Section – Leg In:150 x 20mm 2000 Dia
T Section – Side:160 x 20mm 1500 Dia
Channel – Leg Out:UNP 360 1200 Dia
Channel – Leg In:UNP 360 1400 Dia
Channel – Side:200 x 75mm 11000 Dia
I Beam – Upright:INP 360 1500 Dia
I Beam – Side:IPE 200 5000 Dia
H Beam – Upright:A: 240mm 1500 Dia / B: 200mm 1500 Dia
H Beam – Side:A: 180mm 4500 Dia / B: 160mm 3200 Dia
Max Section Modulus cm3:320 cm3
Motor: Kw30 Kw
Roll Diameter:550mm
Shaft Diameter:240 / 220mm
Bending Speed:0 – 7 m/min
Weight:16900 Kg
Width:2240mm
Length:3360mm
Height:2055mm

  • All three rolls driven for excellent traction
  • Smooth rolls ensure minimum material marking
  • Hardened rolls
  • Moveable control panel
  • Digital read out indicating both back rolls position
  • Overload protection device
  • Hydraulically powered rotation
  • Hydraulically adjusted lateral guide rolls in 2 axis
  • Variable speed of rotation
  • Tube/profile rolls
  • Variable speed of rotation
  • Spiral bending device
  • NC control system
  • CNC control system
  • Digital display for guide rolls
  • I-U-H profile pulling system
