Morgan Rushworth HSR 60/215 Hydraulic Section Rolling Machine 415V

Description

The Morgan Rushworth HSR 60/215 hydraulic section bending machine is designed to roll various material sections. This model has a single hydraulic ram to adjust the top roll, and can be operated in either vertical or horizontal plain. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, avoiding the cost of additional tooling. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material.

Technical Spec

MODELHSR 60/215
Section Moduluscm3
Powerkw4
Rolls Ømm215
Shaft Ømm60
Bending Speedm/min4
Weightkg960
W x L x Hmm1400x1000x1650



Options

  • Tube rolls
  • Digital read out indicating top roll position

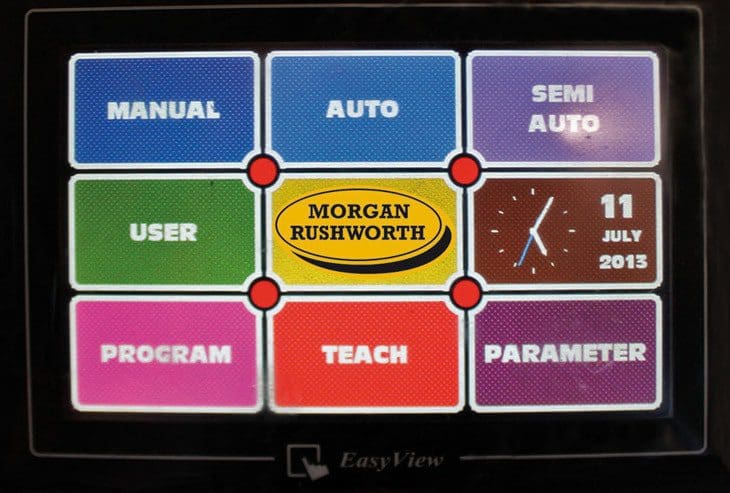

  • NC control system

Features

  • All three rolls driven for excellent traction
  • Smooth rolls ensure minimum material marking
  • Hardened rolls
  • Moveable control panel
