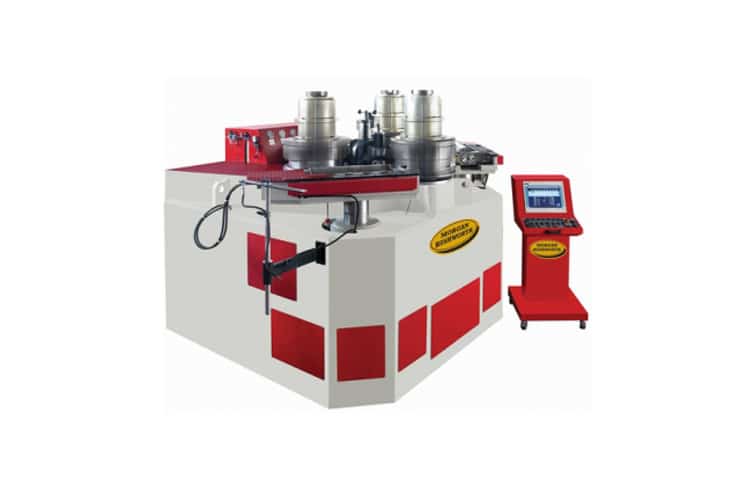

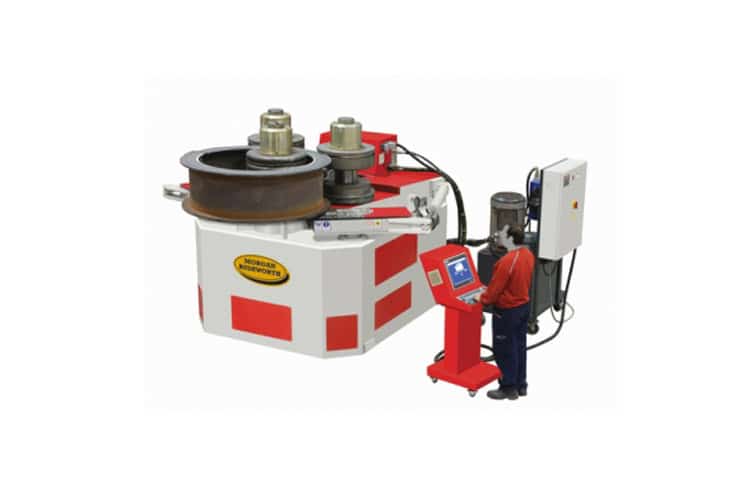

Morgan Rushworth HSR 180/460 Section Ring Rolling Machine 415v

The Morgan Rushworth HSR range of hydraulic large section bending machines are designed to roll various material sections and are available with shaft diameters from 180mm up to 360mm. These have twin rams powering both the back rolls providing pre-bending capability and the convenience of performing the bending operation with the material in the horizontal position. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, avoiding the cost of additional tooling. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material. These machines are currently performing for some of the worlds most well known section rolling companies.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Morgan Rushworth HSR 180/460 Section Ring Rolling Machine 415vMorgan Rushworth HSR 180/460 Section Ring Rolling Machine 415v
Morgan Rushworth Section RollingMorgan Rushworth Section Rolling
Morgan Rushworth Section RollingMorgan Rushworth Section Rolling
Flat Bar The Hard Way:150 x 35mm 1000 Dia
Flat Bar The Easy Way:250 x 40mm 1000 Dia
Solid Square:90 x 90mm 1400 Dia
Solid Round:100mm 1000 Dia
Tube – Thick Wall:168.3 x 7.1mm 2500 Dia
Square Tube:120 x 8mm
Angle – Leg Out:150 x 10mm 1000 Dia
Angle – Leg In:130 x 15mm 1200 Dia
T Section – Leg Out:150 x 15mm 1200 Dia
T Section – Leg In:130 x 15mm 1700 Dia
T Section – Side:150 x 15mm 1300 Dia
Channel – Leg Out:UNP 300 1100 Dia
Channel – Leg In:UNP 300 1100 Dia
Channel – Side:160 x 65mm 10000 Dia
I Beam – Upright:INP 300 1200 Dia
I Beam – Side:IPE 160 3500 Dia
H Beam – Upright:A: 180mm 1100 Dia / B: 160mm 1100 Dia
H Beam – Side:A: 120mm 3500 Dia / B: 120mm 2800 Dia
Max Section Modulus cm3:110 cm3
Motor: Kw15 Kw
Roll Diameter:460mm
Shaft Diameter:180 – 160m
Bending Speed:0 – 7 m/min
Weight:9250 Kg
Width:2000mm
Length:2400mm
Height:1695mm

  • All three rolls driven for excellent traction
  • Smooth rolls ensure minimum material marking

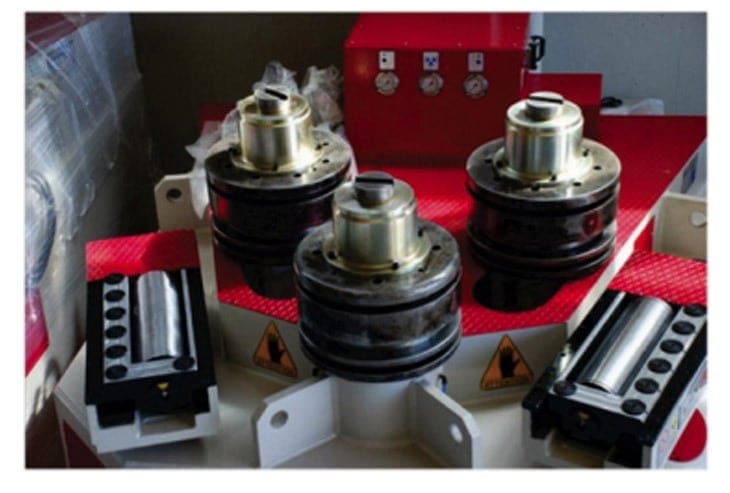

  • Hardened rolls
  • Moveable control panel
  • Digital read out indicating both back rolls position
  • Overload protection device
  • Hydraulically powered rotation
  • Hydraulically adjusted lateral guide rolls in 2 axis
  • Variable speed of rotation
  • Tube/profile rolls
  • Variable speed of rotation
  • Spiral bending device
  • NC control system
  • CNC control system
  • Digital display for guide rolls
  • I-U-H profile pulling system
