Morgan Rushworth HFP Hydraulic H Frame Press 415V

The HFP H frame press is ideal for a whole variety of bending, forming, pressing, straightening and a whole variety of operations. The hydraulic system is equipped with a manometer and a joystick lever to control the operation. A pair of V blocks are supplied as standard equipment.

Morgan Rushworth HFP Hydraulic H Frame Press 415V image
HFP 775-30
Morgan Rushworth HFP Hydraulic H Frame Press 415V image
Video thumbnail showing the Morgan Rushworth HFP Hydraulic H Frame Press 415V
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 3
HFP 1040-60 with Optional Hand Pump & Foot Pedal Controls
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 3
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 4Morgan Rushworth HFP Hydraulic H Frame Press 415V image 4
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 5
Adjustable bed for a variety of Jigs and Supports
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 5
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 6

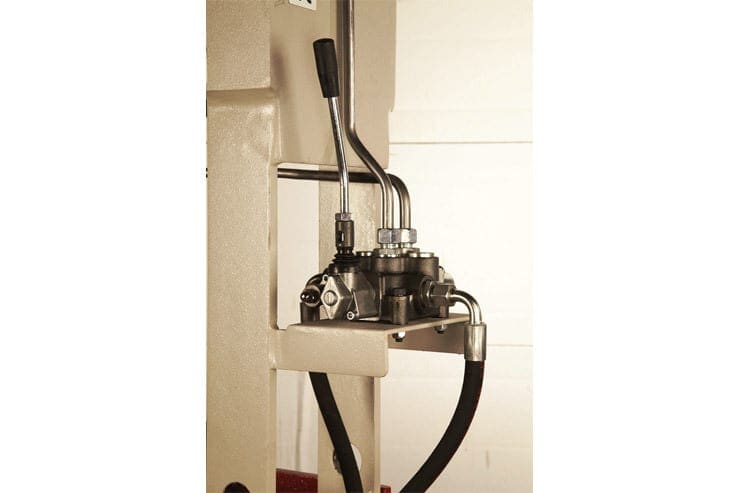

Hydraulic Hand Control
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 6
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 7
Pressure Gauge
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 7
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 8
Pressure Adjustment
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 8
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 9
Vertical Hydraulic Ram (Top View)
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 9
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 10
Vertical Hydraulic Ram
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 10
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 11
Foot Pedal Controller (Optional)
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 11
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 12
Optional DRO (Digital Read-Out)
Morgan Rushworth HFP Hydraulic H Frame Press 415V image 12
MODEL Stock code Power Distance between Frames Stroke Advance speed Working speed Return speed Motor power Length Width Height Weight
Tonnes mm mm mm/sec mm/sec mm/sec kW mm mm mm Kg
HFP 775/30 M4500 30 775 200 8 5 10 3 1500 700 1800 410
HFP 1040/60 M4501 60 1040 250 8 4 10 4 1850 700 2100 790
HFP 1070/100 M4502 100 1070 300 8 5 10 5.5 2050 1000 2200 1520
HFP 1570/100 M4503 100 1570 300 9 5 10 5.5 2500 1000 2200 1900
HFP 1070/150 M4504 150 1070 300 9 5 10 11 2050 1000 2270 1620
HFP 1570/150 M4505 150 1570 300 9 5 10 11 2500 1000 2270 2150



Features

  • Easily adjusted bed height with two hardened pins
  • Bed designed to accept a variety of supports and jigs according to customer requirements
  • Quiet hydraulic system
  • Hydraulic cylinder mounted above providing vertical pressure
  • Ideal for low or high volume operation.

Options

  • Digital Read Out
  • Limit Switch
  • Hand Pump
  • Foot Pedal Control (instead of joystick)
  • Foot Pedal Control with Limit Switch (instead of joystick)
