Meyer ST1066 Lathe 415V

Selmach Machinery offer an extensive range of metal engineering lathes including the Meyer ST1066 Lathe 415V. The Meyer Precision Lathes range from 330mm to 660mm swing capacities and from 1000mm to 3000mm distance between centers. The ST range are large capacity machines with 660mm swing dimension and distance between centers available up to 3000mm. All Meyer lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

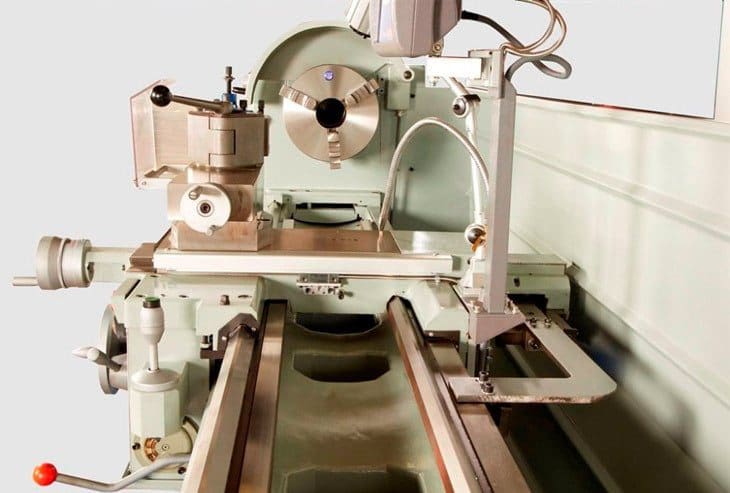

Meyer ST1066 Precision Centre LatheMeyer ST1066 Precision Centre Lathe
Meyer Precision Centre LatheMeyer Precision Centre Lathe
Meyer Precision Centre LatheMeyer Precision Centre Lathe
Meyer Precision Centre LatheMeyer Precision Centre Lathe
Swing Over Bed:660mm
Swing Over Cross Slide:420mm
Swing Over Gap:870mm
Length Of Gap:240mm
Distance Between Centres:1000mm
Feed Rates – Longitudinal: No. Of Steps65
Feed Rates – Longitudinal Range: mm/rev0.063 – 2.52 mm/rev
Feed Rates – Cross: No Of Steps65
Feed Rates – Cross Range: mm/rev0.027 – 1.07 mm/rev
Max Travel Of Cross Slide:310mm
Max Travel Of Compound Rest:145mm
Thread Cutting – Metric : No. Of Steps22
Thread Cutting – Metric Range:1.0 – 14mm
Thread Cutting – Imperial: No. Of Steps25
Thread Cutting – Imperial Range: TPI2 – 20 TPI
Thread Cutting – Diametric: No. Of Steps24
Thread Cutting – Diametric Range: DP4 – 56 DP
Thread Cutting – Module: No. Of Steps18
Thread Cutting – Module Range: MP0.5 – 7 MP
Thread Cutting – Lead Screw Pitch:6mm

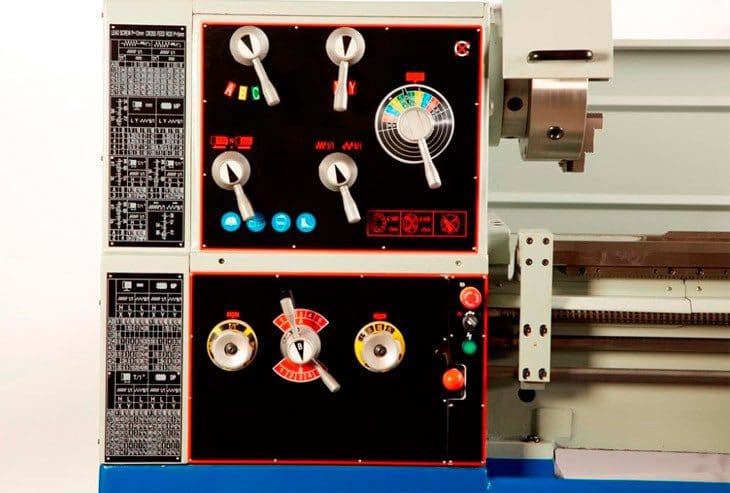

Head Stock – Spindle Nose:D1-8
Head Stock – Spindle Bore:105mm
Head Stock – Spindle Bore Taper:7 MT
Head Stock – Spindle Speeds: No. Of Steps12
Head Stock – Speeds Range: Rpm36 – 1600 Rpm
Tailstock – Quill Diameter:75mm
Tailstock – Quill Travel:150mm
Tailstock – Quill Taper: MT5 MT
Motor: Kw7.5 Kw
Length:2630mm
Width:1150mm
Height:1520mm
Weight:2400 Kg

  • Heavy duty.
  • Chuck guard with interlock switch.
  • Halogen lamp.
  • Fixed steady.
  • Travelling steady.
  • 4 jaw chuck.
  • 3 jaw chuck.
  • Face plate.
  • Coolant system.

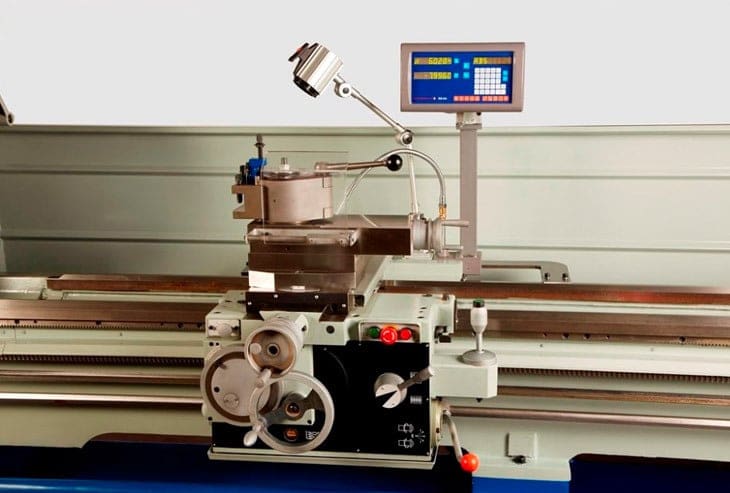

  • 2 axis DRO.
  • Super quick tool change system with 4 holders.
  • Taper turning attachment
