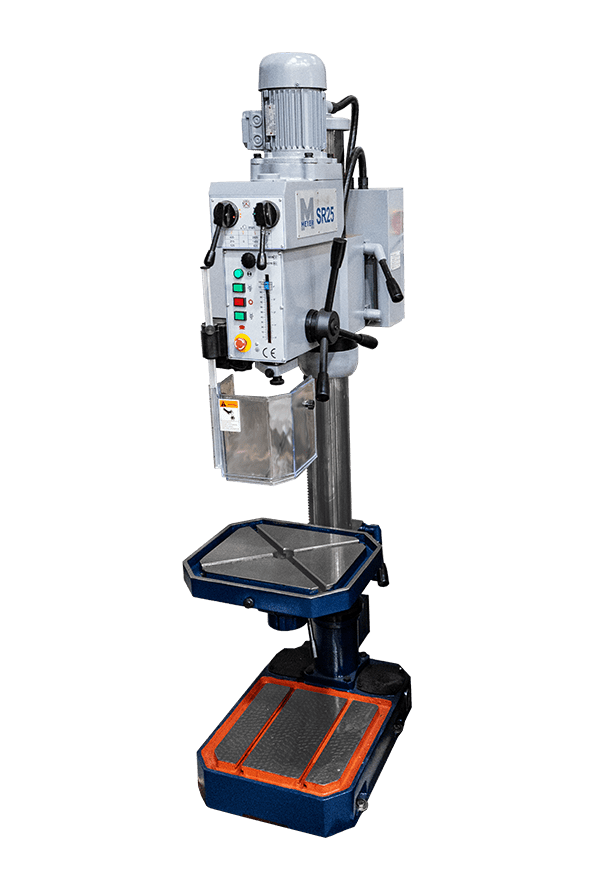

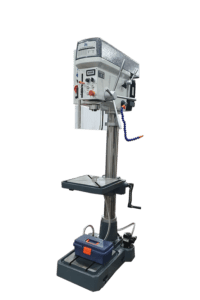

Meyer SR25 Geared Head Drilling Machine 415v


The Meyer range of powerful geared head drills are a exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence. The Meyer SR25 Geared Head Drilling Machine 415v will not disappoint.

Technical Spec

Drilling Capacity:25mm
Column Diameter:95mm
Spindle Taper : Morse Taper No.3 Morse Taper

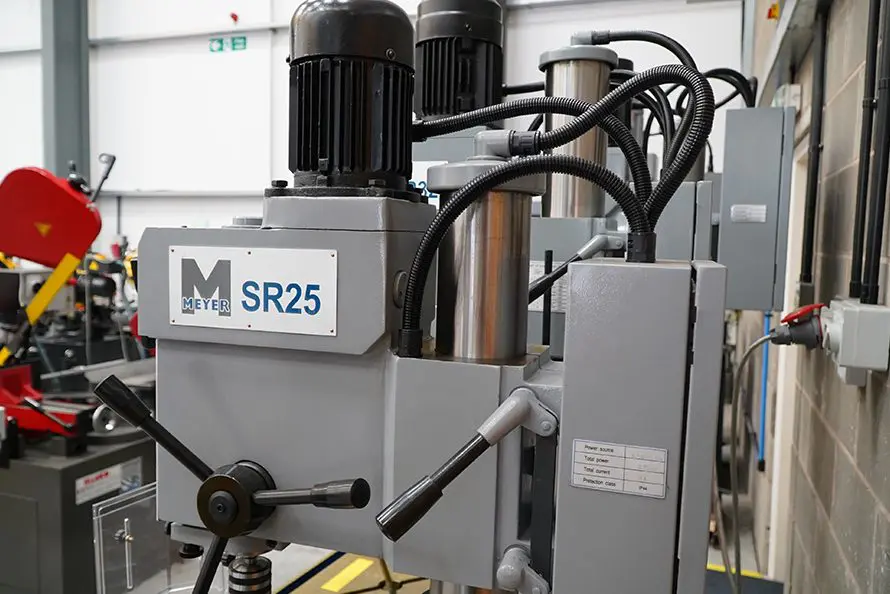

Motor: Kw0.75 Kw

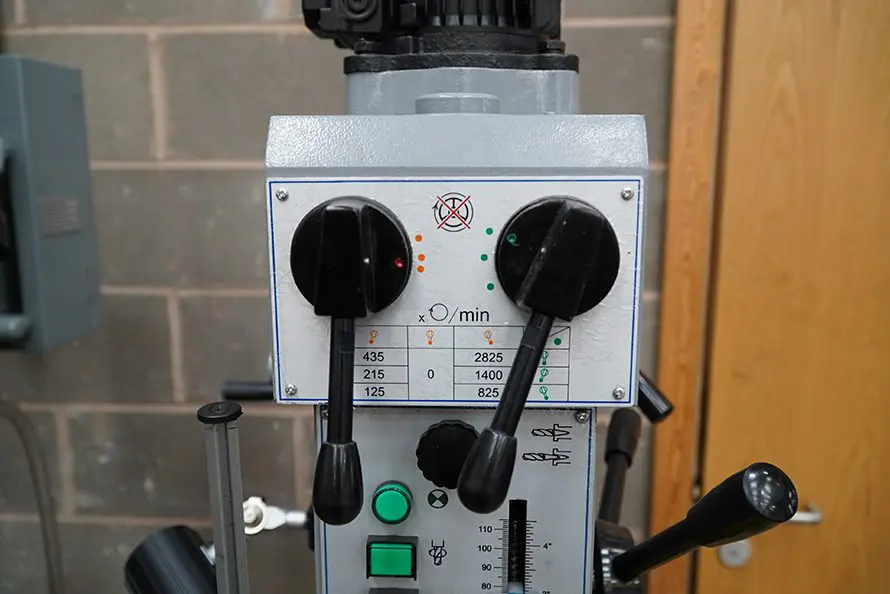

Speeds:125 – 2825 Rpm

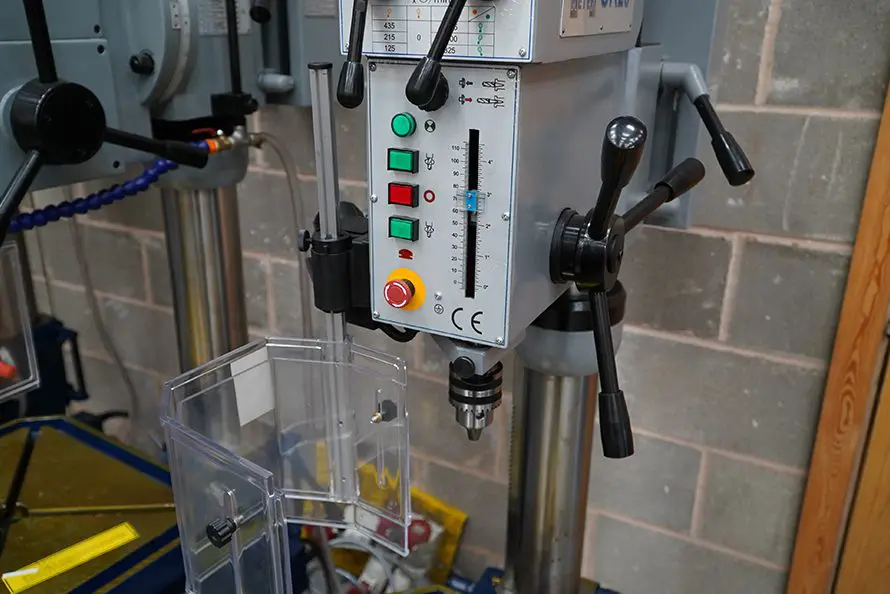

Spindle Stroke:110mm
Work Table:350 x 400mm
Base Plate:340 x 340mm
Throat Depth:240mm
Weight:400 Kg


  • Drill Press Vice: 18009
  • Universal Cross Table: 18047


  • Geared head.
  • Exceptional heavy construction.

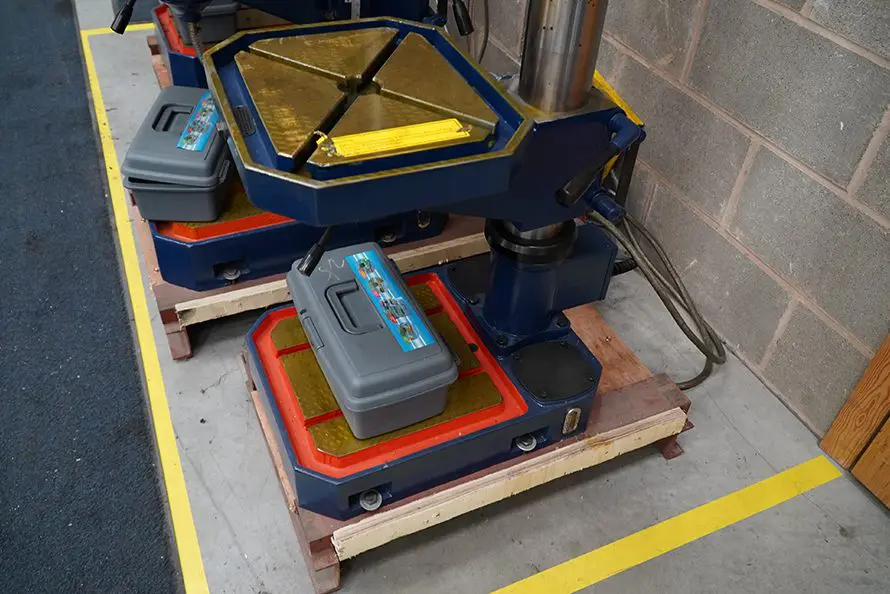

  • Large work tables.
  • Auto tool release.

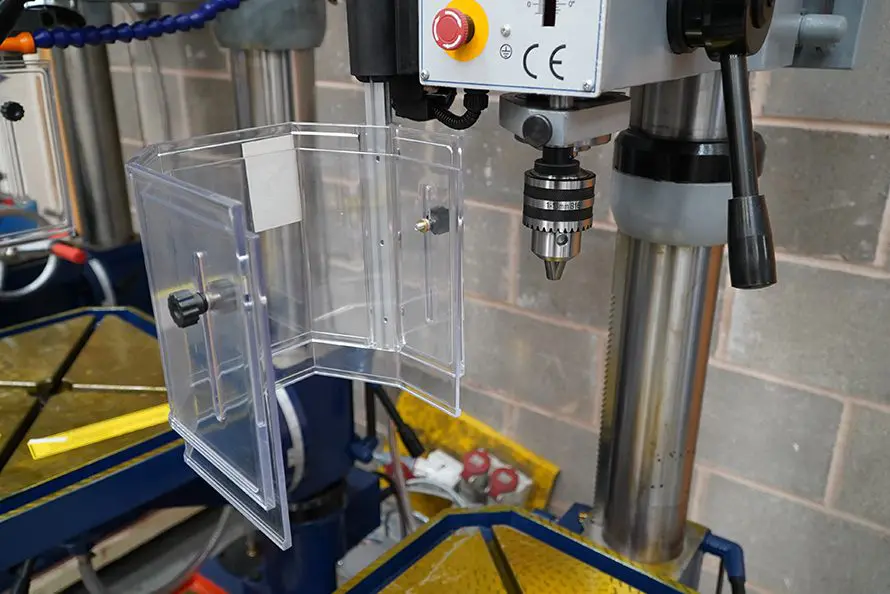

  • Eye shield with interlock switch.

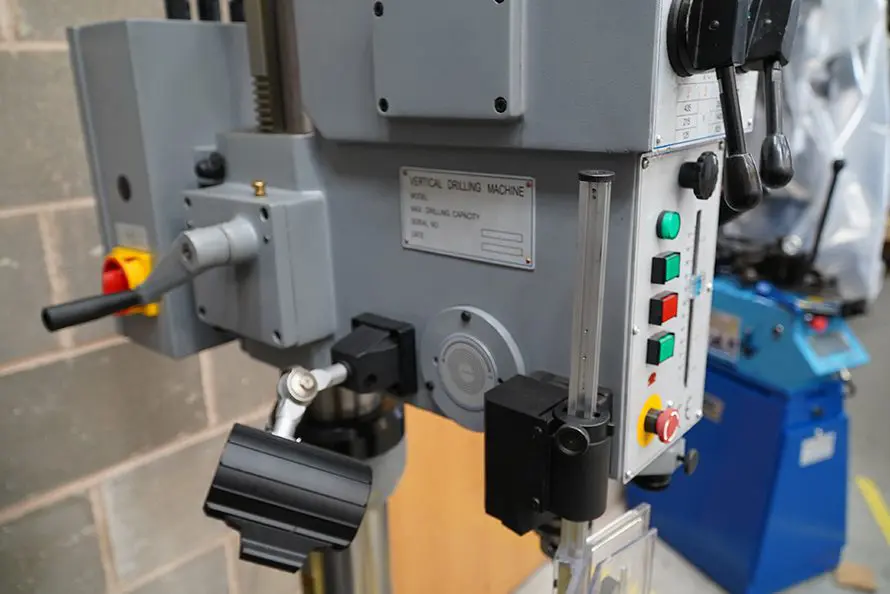

  • Low voltage lamp.

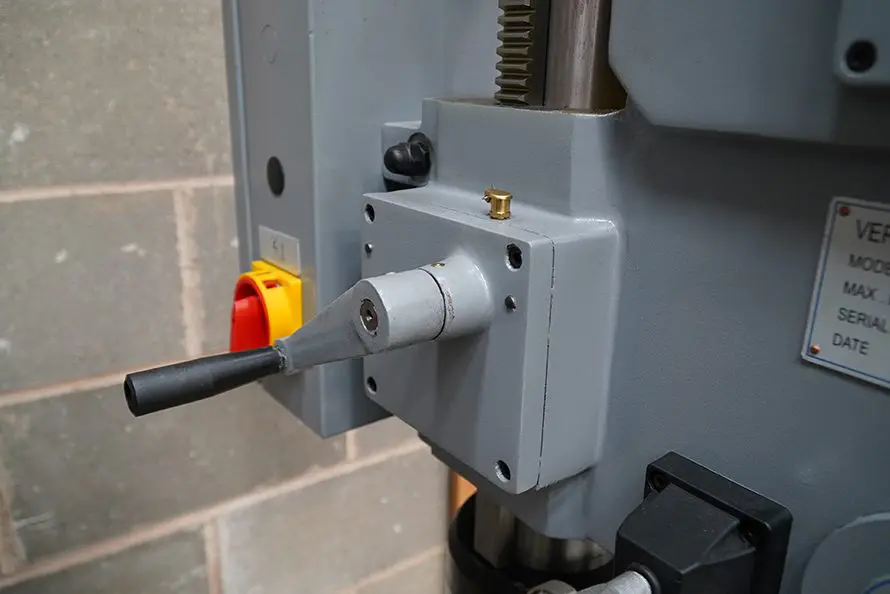

  • Rise and fall table.
  • Rise and fall head.
  • Forward and reverse.
