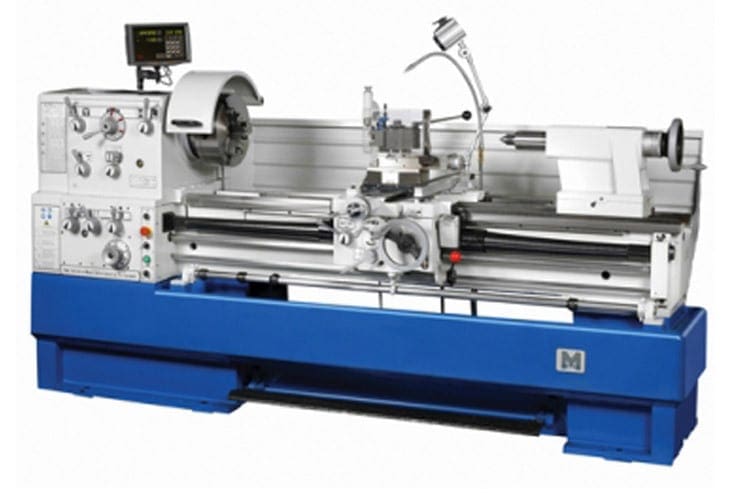

Meyer SG2056 Lathe 415V
Selmach Machinery offer an extensive range of precision lathes including the Meyer SG2056 Lathe 415V. The Meyer Precision Lathes range from 330mm to 660mm swing capacities and from 1000mm to 3000mm distance between centres. The heavy duty SG machines are available in eight different sizes and have the added benefit of 2 axis DRO and the super quick tool change system fitted as standard equipment. All Meyer lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.
Request a Quote
| Swing Over Bed: | 560mm |
|---|---|
| Swing Over Cross Slide: | 350mm |
| Swing Over Gap: | 788mm |
| Length Of Gap: | 200mm |
| Distance Between Centres: | 2000mm |
| Width Of Bed: | 350mm |
| Feed Rates – Longitudinal: No. Of Steps | 35 |
| Feed Rates – Longitudinal Range: mm/rev | 0.059 – 1.646 mm/rev |
| Feed Rates – Cross: No Of Steps | 35 |
| Feed Rates – Cross Range: mm/rev | 0.02 – 0.573 mm/rev |
| Max Travel Of Cross Slide: | 326mm |
| Max Travel Of Compound Rest: | 130mm |
| Thread Cutting – Metric : No. Of Steps | 47 |
| Thread Cutting – Metric Range: | 0.2 – 14mm |
| Thread Cutting – Imperial: No. Of Steps | 60 |
| Thread Cutting – Imperial Range: TPI | 2 – 112 TPI |
| Thread Cutting – Diametric: No. Of Steps | 50 |
| Thread Cutting – Diametric Range: DP | 4 – 112 DP |
| Thread Cutting – Module: No. Of Steps | 39 |
| Thread Cutting – Module Range: MP | 0.1 – 7 MP |
| Thread Cutting – Lead Screw Pitch: | 6mm |
| Head Stock – Spindle Nose: | D1-8 |
| Head Stock – Spindle Bore: | 80mm |
| Head Stock – Spindle Bore Taper: | 7 MT |
| Head Stock – Spindle Speeds: No. Of Steps | 12 |
| Head Stock – Speeds Range: Rpm | 25 – 1600 Rpm |
| Tailstock – Quill Diameter: | 75mm |
| Tailstock – Quill Travel: | 180mm |
| Tailstock – Quill Taper: MT | 5 MT |
| Motor: Kw | 7.5 Kw |
| Length: | 3400mm |
| Width: | 1120mm |
| Height: | 1460mm |
| Weight: | 2720 Kg |
* Heavy duty.
* Chuck guard with interlock switch.
* Halogen lamp.
* Fixed steady.
* Travelling steady.
* 4 jaw chuck.
* 3 jaw chuck.
* Face plate.
* Coolant system.
* 2 axis DRO.
* Super quick tool change system with 4 holders.
* Taper turning attachment.
