MACC TA 400 Aluminium Circular Saw 415V

The Macc TA400 Circular Saws are designed specifically to cut aluminium and other non-ferrous materials with an extremely fast cutting speed of 3000 RPM.

Teflon jaws prevent marking of material when clamping and the versatile double clamping design allows rapid clamping of profile of any size within capacity. The machine not only mitres left and right but also has the facility to compound mitre to the left.

MACC TA 400 Aluminium Circular Saw 415V imageMACC TA 400 Aluminium Circular Saw 415V image
Front view MACC-TA400P-Alumunium-Circular-Saw
With Optional Base and Pneumatic Vice
Front view MACC-TA400P-Alumunium-Circular-Saw
Detail of the MACC-TA-Aluminium-Circular-Saw
With Optional Base and Pneumatic Vice
Detail of the MACC-TA-Aluminium-Circular-Saw
Left side MACC-TA-Aluminium-Circular-Saw
With Optional Base and Pneumatic Vice
Left side MACC-TA-Aluminium-Circular-Saw
Right side MACC-TA-Aluminium-Circular-Saw
With Optional Base and Pneumatic Vice
Right side MACC-TA-Aluminium-Circular-Saw
MODEL   TA 400
Capacities  90° 45°
◯ Solid mm 60 60
◯ Tube mm 140 130
□ Box Section mm 110 100
▭ Widest Cut mm 180 x 100 150 x 100
Blade Diameter mm 400
Blade Bore mm 32
Blade Speeds rpm 3000
Motor kW 2.2
Operation Manual Instant Pull Down
Vice Width mm 180
Vice Operation Manual
Length mm 900
Width mm 1000
Height mm 1500
Weight Kg 185

Features

  • Manual shear for cutting solid or section bars made of aluminium or light alloys
  • 24 V low voltage installation with hold-to-run head control knob
  • Knob with small stake ensuring fast positioning of the head to 0° and 45° right and left

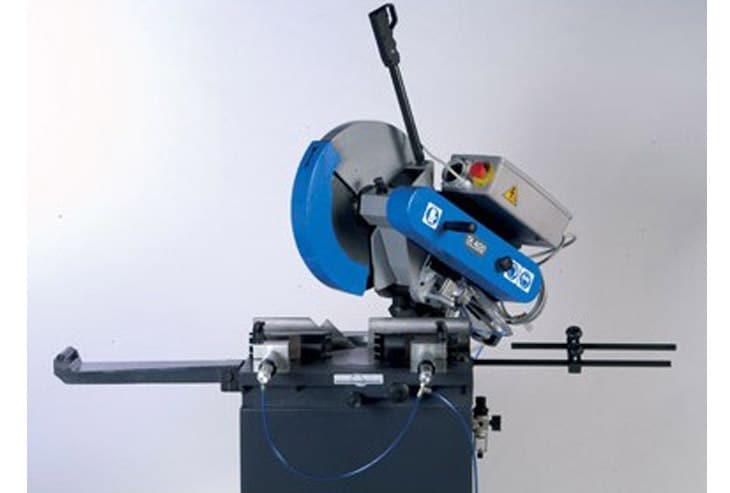

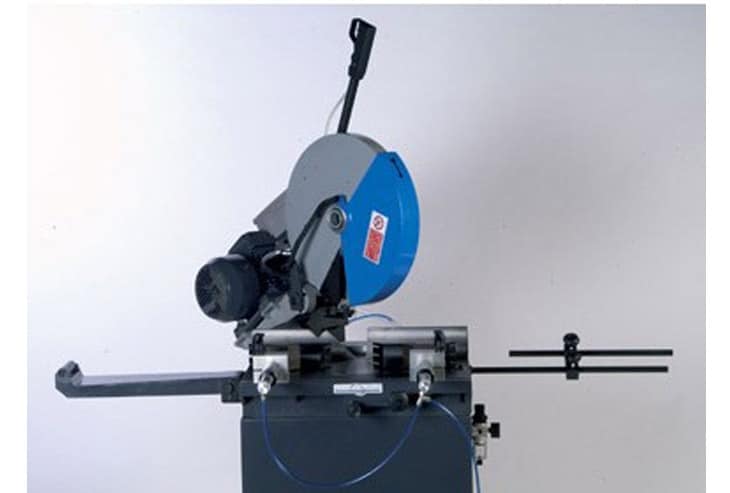

  • Movable head 45° right and left

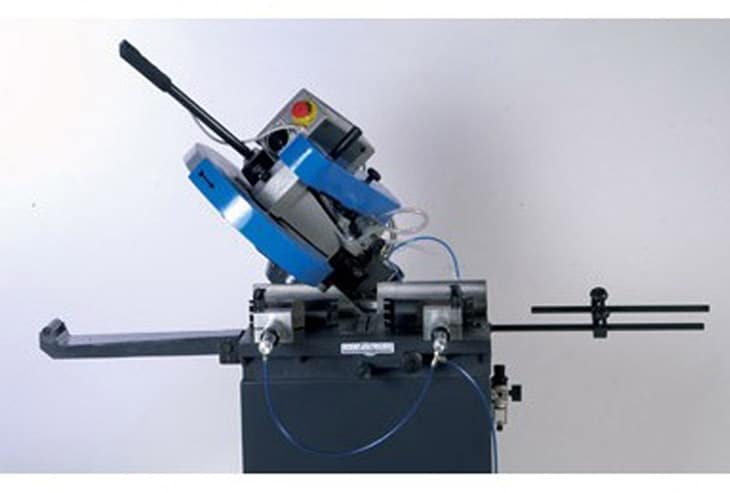

  • Inclinable head 45° left
  • Blade holder shaft on bearings
  • Movable plate assembled on spheres
  • Two manual vices
  • Teflon jaws to fix the pieces
  • Bar support arm
  • Bar stop
  • Service tools
  • Instructions manual and spare parts

Options

  • Pedal controlled pneumatic vice
  • Single-phase motor
  • Pedestal Base
