Curvassi C100 Pipe Bending Machine 415v

Curvassi’s unverisal bending machine C100 is ideal for bending thin wall tube to a tight radius and bow top fencing in round bar.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

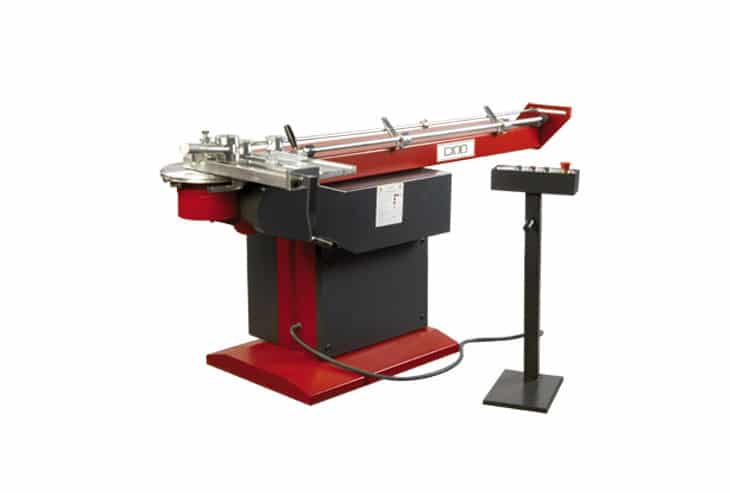

Curvassi C100 Pipe Bending Machine 415vCurvassi C100 Pipe Bending Machine 415v

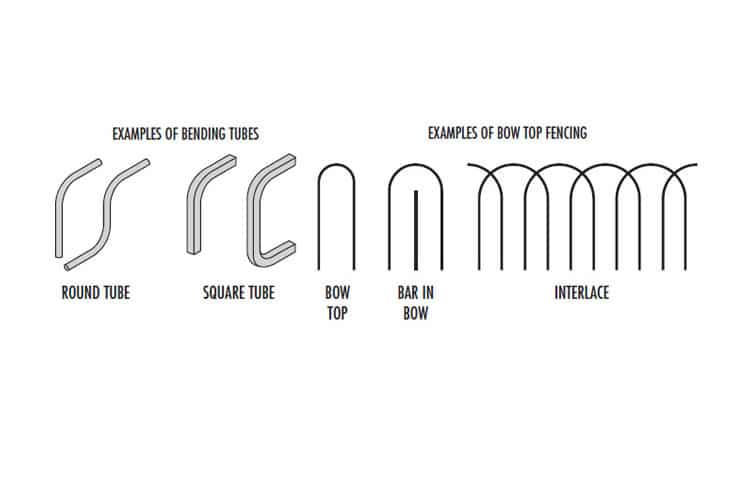

Bending ExamplesBending Examples

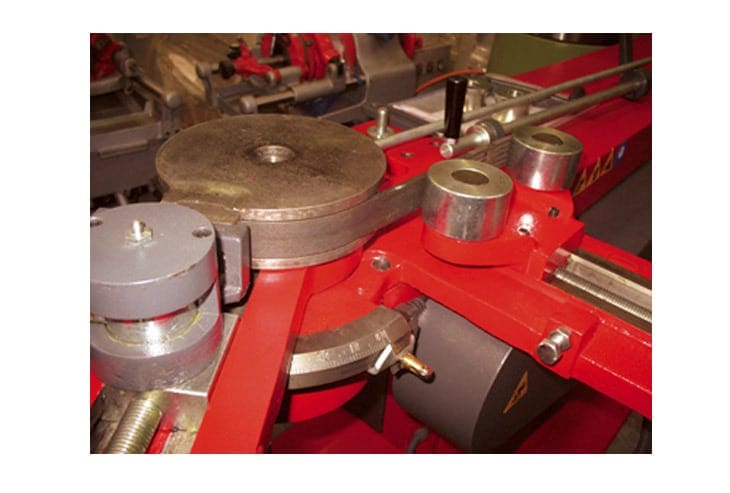

Curvassi C100 Pipe Bending Machine Close UpCurvassi C100 Pipe Bending Machine Close Up
Tube Capacity:38mm
Max Capacity – Solid Bar:20mm
Max Bending Diameter:600mm
Max Bending Angle:180
Mandrel Length:1620mm
Motor: Kw3 Kw
Length:1950mm
Width:950mm
Height:920mm
Weight:220 Kg
  • Bends round, square and flat bar and tube.
  • Bends mild steel, stainless steel and aluminium.
  • Ideal for bending thin wall tube to a ‘tight’ radius.
  • Ideal for bow top fencing in thin wall tube with the aid of a mandrel bar to provide a perfect finish. No wrinkling on inside and no flattening on outside of tube.
  • Ideal for bow top fencing in round bar. 12mm bar – 3 bows per bend,16mm bar – 2 bows per bend 20mm bar – 1 bow per bend
  • Very fast – 180¡ bend in 3 seconds.
  • Tooling for bending round and square tube.
  • Tooling for bow top fencing and round bar.
