Cidan Compact 12 Automatic 5 Roll Coil

Description

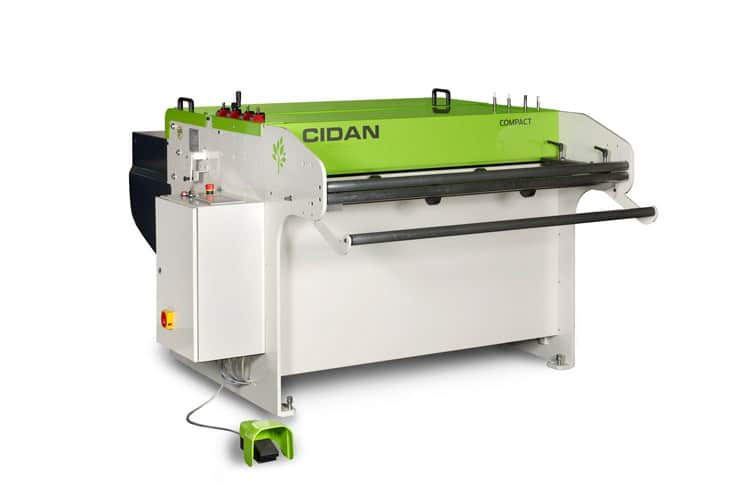

The CIDAN cut to length line COMPACT 12 is a fully automatic line and is supplied in a very compact construction for coiled widths 1250mm and 1550mm. No other manufacturer can beat the quality and accuracy of the cut and split pieces in a line of this size. With this line, the productivity can be drastically increased by programming different lengths and pieces so the use of material will be optimised with much less scrap.

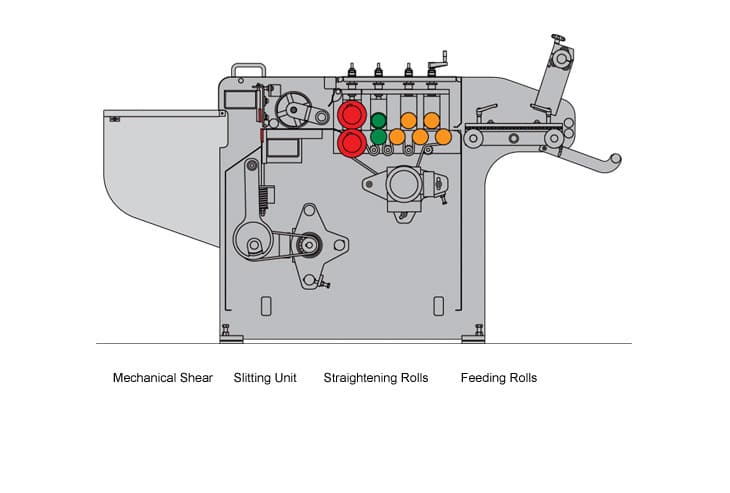

The COMPACT 12 has a straightening unit with 5 rolls and the cut to length is done by motorised mechanical shear. The LineLink control system with a colour touch screen gives you the possibility to store many programs as well as a library of coils. This machine is fitted with a slitting unit and multiple slitting knives capable of handling pre-painted sheets and other sensitive materials.

Technical Spec

MODEL COMPACT 12
Cutting Widthmm1250
Cutting Capacity Steel*mm1.25
Cutting Capacity Stainless Steel**mm0.75
Cutting Capacity Aluminum***mm1.75
Speedm/min12
Main MotorKW shear & feeding1.5 + 1.1
Lengthmm 2238
Depthmm 1804
Weightkg 1500



*400 N/mm2  – 58000 psi – **700 N/mm2 – 87000 psi – ***200 N/mm2 – 29000 psi

Options

  • Slitting unit  with 1-6 pairs of slitting knives
  • Device for adding protecting foil on one or two sides of the sheet with brake
  • Manual or motorised decoilers
  • Control panel on the right side
  • Punching unit
  • CE-fencing
  • Cooling package for electrical cabinet (recommended if ambient temperature <35°C
  • Forced cooling for cutting motor (for repetitive high volume cuts)

Features

  • Straightening unit with 5 straightening rolls (diameter 70mm)
  • Position indicator with digital readout
  • Sheet guide for in-feed
  • Guillotine shear with hold down beam
  • Double edged blades
  • Programmable control system (LineLink) with touch screen and multiple langauges
  • 2 feeding rolls (1 rubber coated)
  • Mechanical fencing at rear of the machine
  • Control panel on the left side
  • Foot pedal for remote feeding
