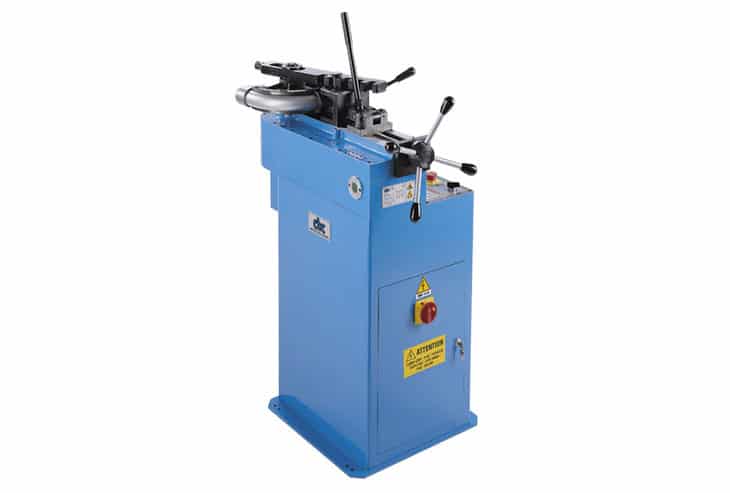

CBC UNI70/C Digital Tube Bending Machine 415V

Description

The CBC tube bending machines range from ‘easy to use’ simple machines to precision programmable production machines. A comprehensive tooling range ensures high bend quality on all models. Optional equipment includes moving arm with positioning stops and plane of bend indicator.

Technical Spec

Tube Capacity:60.0 x 4mm Tube (mild)
Maximum Bending Angle:180
Motor: Kw1.5 / 2.2 Kw
Memorable Programs:70 Programs
No. Of Bends/Program:6 Bends / Program
Weight:210 Kg
Length:810mm
Width:400mm
Height:1100mm

Options

  • 2 wheeled cabinet available.

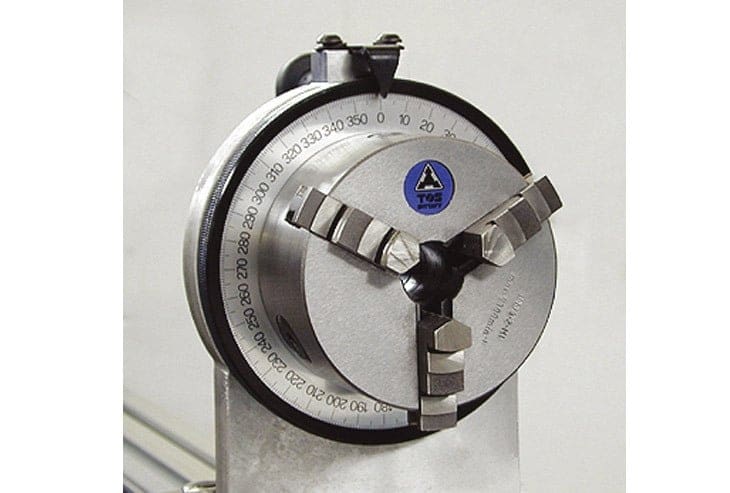

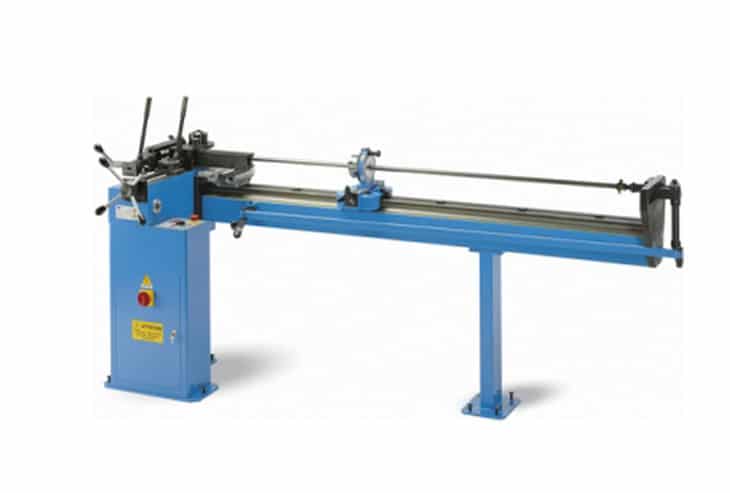

  • Moving arm with positioning stops and plane of bend indicator. Available in 2m, 3m, 4m & 5m Lengths.
  • Mandrel arm system. Available in 2m, 3m, 4m & 5m Lengths.
  • 110V models available.

Features

  • Superb bend quality.

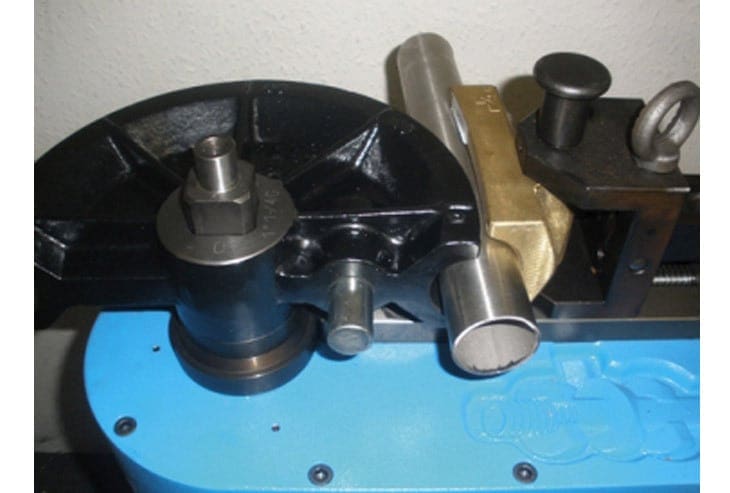

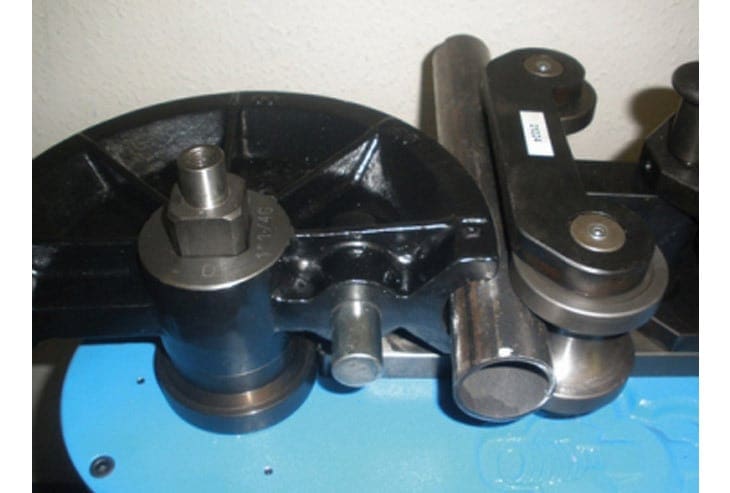

  • Complete tooling service.
  • Programmer with memories including ‘spring back’ allowance.
  • Very compact.
