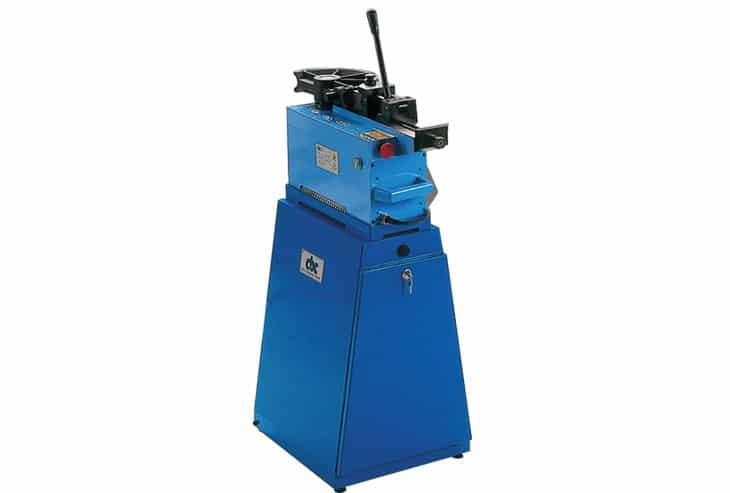

CBC UNI42 Tube Bending Machine 240V

Description

The CBC tube bending machines range from ‘easy to use’ simple machines to precision programmable production machines. A comprehensive tooling range ensures high bend quality on all models. Optional equipment includes moving arm with positioning stops and plane of bend indicator.

Technical Spec

Tube Capacity:42.4 x 3.2mm Tube (mild steel)
Maximum Bending Angle:180
Motor: Kw0.56 Kw
Weight:35 Kg
Length:600mm
Width:170mm
Height:350mm

Options

  • 2 wheeled cabinet available.
  • Moving arm with positioning stops and plane of bend indicator. Available in 2m, 3m, 4m & 5m Lengths.
  • Mandrel arm system. Available in 2m, 3m, 4m & 5m Lengths.
  • 110V models available.

Features

  • Superb bend quality.
  • Complete tooling service.
  • Adjustable limit switch with angle scale standard on UNI 42 and UNI 60.
  • Very compact. Ideal on site
