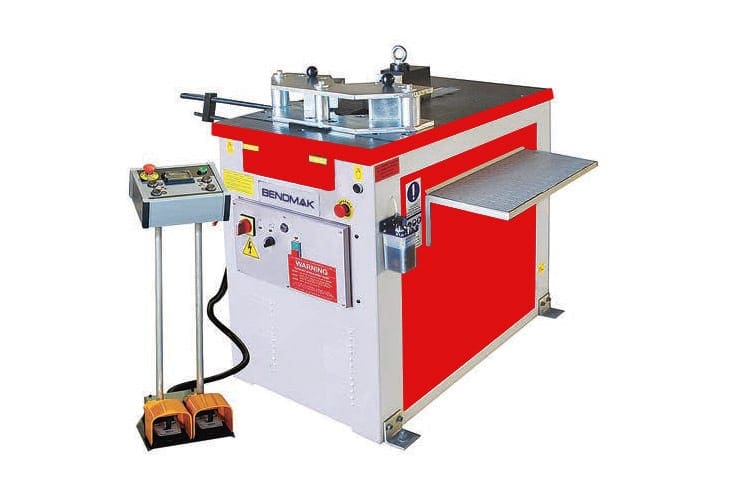

Bendmax APB 22 Horizontal Bending Machine

Description

The Bendmax APB 22 Horizontal Bending Machines are ideal for easy precision bending, straightening, punching and shearing. All models have a clear unemcumbered worktable surface.

These machines are very adaptable machine able to render functions. The Bendmax machines are manufactured in Turkey and are very heavy duty construction.

There is an optional feed stroke decimal indicator which provides macro stroke adjustment to 0.1mm.

Technical Spec

Rated Capacity: Tonnes22 Tonnes
Max Flat Bar Bending:120 x 15mm
Max Flat Bar Bending On Edge:8 x 100mm
Max Height Straightening:150mm
Max Tube Capacity:48.3mm
Punching:30 x 4.5mm
Bar Shearing:10 x 100mm
Section Shearing – Square:80 x 80 x 2mm
Section Shearing – Rectangle:60 x 80 x 2mm
Section Shearing – Angle:80 x 80 x 4mm
Section Shearing – Channel:80 x 40 x 4mm
Table Height:955mm
Table Size:630 x 1100mm
Approach Speed:1750mm/min
Stroke Length:200mm
Return Speed:1980mm/min
Min Distance From Ram To Post:120mm
Max Distance From Ram To Post:320mm
Motor: Kw1.5 Kw
Length:1100mm
Width:630mm
Height:1050mm
Weight:630 Kg



Features

• Built according to EC Safety Directives (CE-Mark Approved)
• Very adaptable machine able to render many functions
• Very quiet operation
• Rapid change tool pins
• Digital stroke regulation by means of extremely sensitive electric limit switches and graduated rule
• Large range of special tooling
• Ideal for jobbing or production applications
