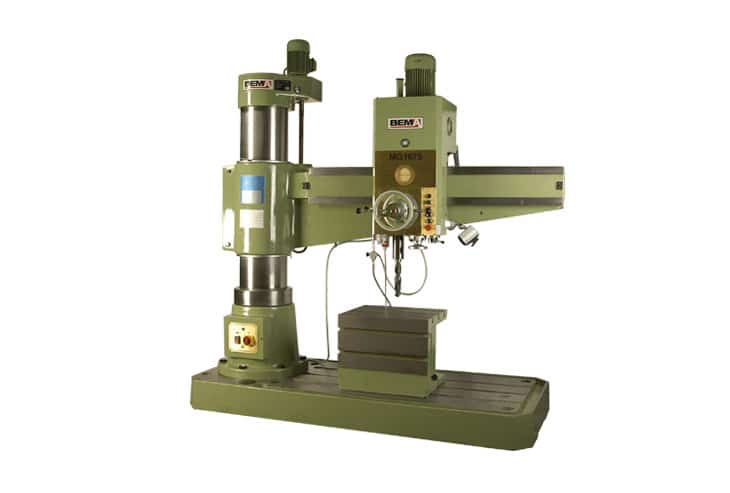

Bema MG2090 Radial Arm Drill 415v


The Bema MG2090 Radial Arm Drill 415v range of powerful geared head radial arm drills are a exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Bema range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.

Technical Spec

Drilling Capacity : C.I90mm
Spindle Taper : Morse Taper No.6 Morse Taper
Motor: Kw7.5 Kw
Speeds:16 – 1250 Rpm
Spindle Stroke:400mm
Box Table:800 x 550 x 550mm
Base Plate:3000 x 1200mm
Throat Depth:2000mm
Weight:8000 Kg


  • MEGA machine vice – Jaw width 250mm / Jaw opening 280mm STOCK CODE 18033
  • MEGA machine vice – Jaw width 320mm / Jaw opening 360mm STOCK CODE 18034


  • Geared head – Hydraulic gear change.
  • Automatic hydraulic clamping and unclamping of column and arm.
  • Powered feed.

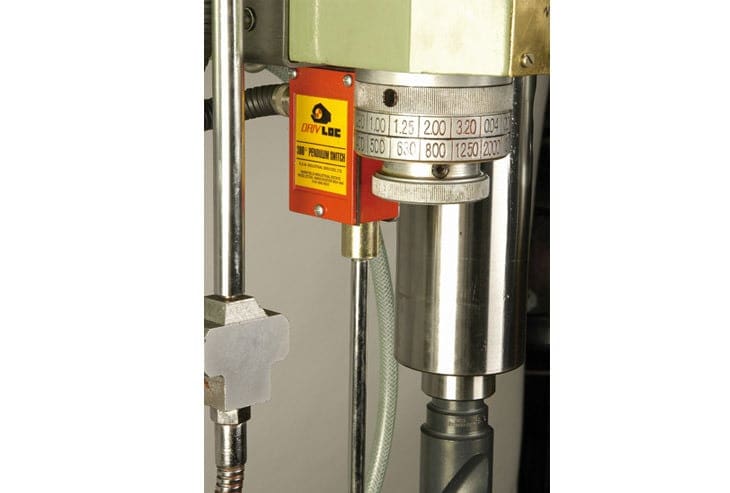

  • DC injection brake providing instant stop in emergency.
  • Exceptional heavy construction.
  • Large box table with T Slots.
  • Low voltage lamp.
  • Forward and reverse.
  • Coolant system
