Bema MG1050 Radial Arm Drill 415v

Description

The Bema MG1050 Radial Arm Drill 415v range of powerful geared head radial arm drills are a exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Bema range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.

Technical Spec

Drilling Capacity : C.I50mm
Spindle Taper : Morse Taper No.4 Morse Taper
Motor: Kw2.2 Kw
Speeds:32 – 2500 Rpm
Spindle Stroke:280mm
Box Table:600 x 450 x 450mm
Base Plate:1700 x 800mm
Throat Depth:1000mm
Length:1760mm
Width:800mm
Height:2050mm
Weight:1600Kg

Options

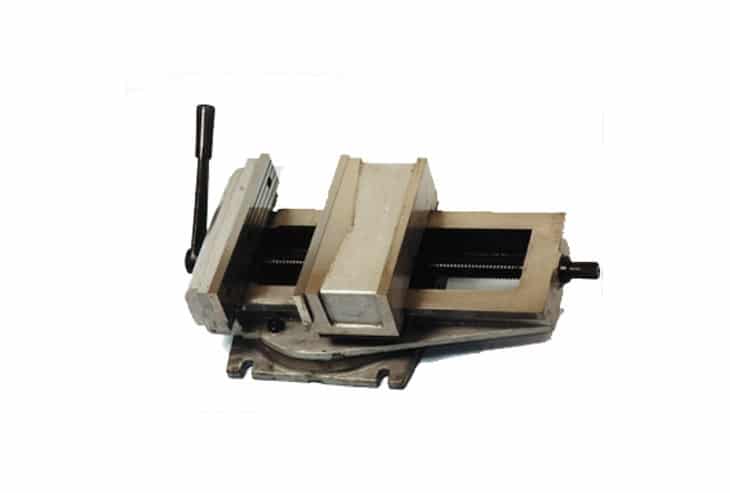

  • MEGA machine vice – Jaw width 250mm / Jaw opening 280mm STOCK CODE 18033
  • MEGA machine vice – Jaw width 320mm / Jaw opening 360mm STOCK CODE 18034

Features

  • Geared head.
  • Powered feed.

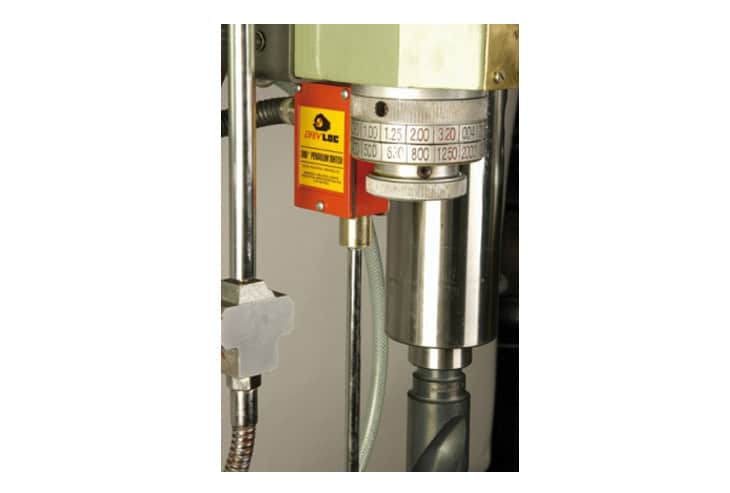

  • DC injection brake providing instant stop in emergency.
  • Exceptional heavy construction.
  • Manual clamping to column and arm.
  • Large box table with T Slots.
  • Low voltage lamp.
  • Forward and reverse.
  • Coolant system
