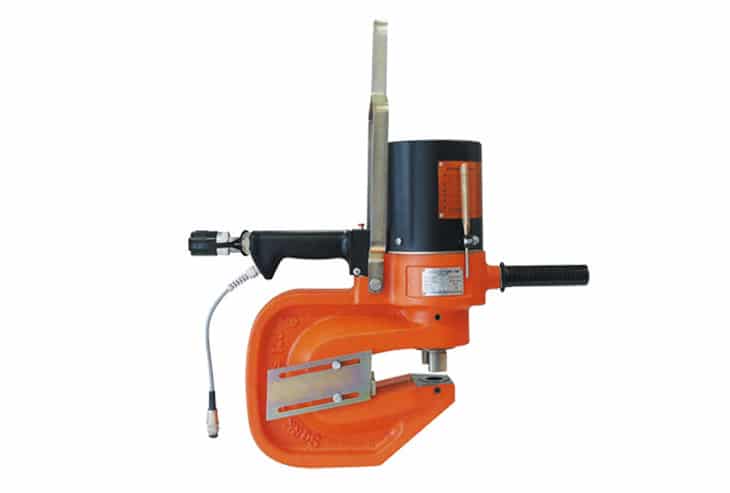

APS 120S Portable Punching Machine


The APS portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements.

Technical Spec

Rated Capacity44 Tonnes
Maximum Capacities25 x 14mm
Maximum Punching Thickness16mm
Punching Stroke25mm
Throat Depth120mm
Punching Time13 sec
Return Time2 sec



  • Quick and clean punching of holes
  • Almost noiseless operation
  • Power inching for accurate alignment
  • Portable yet powerful
  • Can be bench mounted for punching base plates, etc.
  • Tool kit included
  • Large range of punch and dies available – round, square, slot and special shapes
  • 5M hydraulic hose
  • Depth stop
  • Suspension hanger
