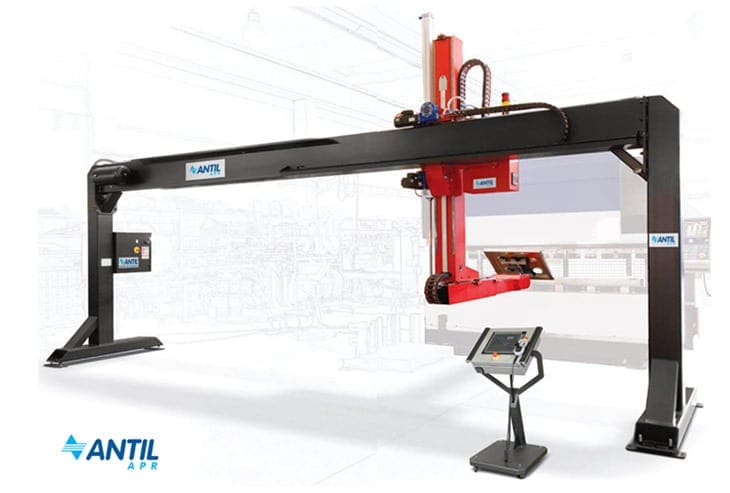

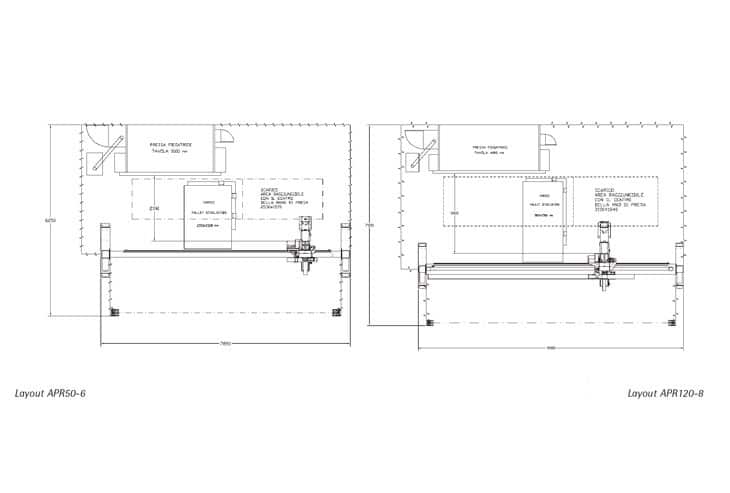

Antil Robotic APR 80 Robot Arm

Description

The new Antil Robotic APR 80 represents a technological evolution in the sheet and plate bending industry.A new line of robots with redesigned mechanics and innovative hardware enables improved productivity for automatic bending operations alongside the traditional Hydraulic Pressbrake. The new software provides even faster programming, while improved performance delivers higher productivity and better return on investment. The APR 80 can be operated by anyone who is familiar with the bending process.

Technical Spec

MODELAPR 80
Working Areamm3500
Weight at Wristkg80
Torque at Rotation Centrekgm24
X Axis Travelm8-10
Y Axis Travelmm2320
Z Axis Travelmm1645
Working Height under the Sliding Supportmm2650
Power SupplyV 3 Phase400
CapacityKVA10.5 – 15
Pneumatic FeedBAR “pipe6



Options

  • Extra Gripper for pieces up to 500×500
  • Extra Gripper for pieces up to 1250×1250
  • Extra Gripper for pieces up to 2500×2500
  • Retractable front support arms
  • Alarm messages sending system with SMS
  • Couple of extra locators with sensors (for presses without motor controlled  axis)
  • Additional pair of sensors

Features

  • Floor mounted
  • Quick transition to allow use of the manual pressbrake mode
  • Five axes, three linear, two polar
  • Position transducer of the press table with relative electronic equipment for synchronised plate following
  • Basic software for programming, palletisation and loading/unloading programmes from a PC. Night and Day automatic switching off system.
  • Plate Gripping Tool with suckers
  • Standard Rear Striker Plates with sensors dedicated to bending in automatic mode
  • 1 Centring and peeling system with 400mm magnetic locators, blowing and brushing system
  • Lateral safety grid and fontal safety photoelectric barrier
  • The robotic wrist consists of a hollow shaft which feeds the gripper with air, vacuum and electrical signals with no risk to cut the delivery lines with the displacement of the metal sheet.
  • The robotic arm always remains in the horizontal position allowing  the positioning of the piece in the machine by holding it above and below to avoid any hindrance to the production.
  • The linear axes allow the positioning of the APR arm to always be in the same place in front of all the bending stations and on all pallets
